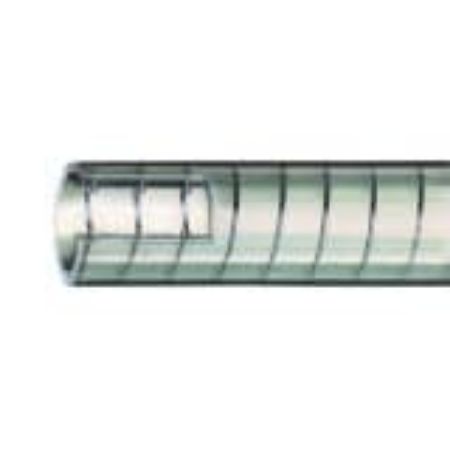

DYNAFLEX® PVC Clear Suction Hose, Series 7570

Parker's Series 7570 Dynaflex PVC Clear Suction Hose provides low pressure standard duty service across multiple applications. The clear, smooth tube does not impart taste or odor to material being conveyed, allows unimpeded flow and easy and quick observation of the transfer process. Series 7570 is resistant to abrasion and weathering for maximum performance.

Markets:

• Agriculture

• Food and Beverage

• General Industrial

Features/Benefits:

• Tube: Clear PVC for sanitary processing to 140°F.

• Reinforcement: Wire helix crush resistance, kink resistance, suction capability and a path to conduct a static electrical charge to ground.

• Cover: Clear/green tint PVC for easy visual observation, and abrasion and weathering resistance.

Applications:

- media

• Dry abrasive materials

• Flour

• Food

• Grains

• Granules

• Pellets

• Potable water

• Powders

• Sugar

- usage

• Delivery

• In-pant transfer

• Transport

Industry Standards:

• FDA

Safety/Technical:

• Design Factor: 3:1

• Vacuum: 22in Hg to 27in Hg

Warnings:

• Working pressures are at +68°F (+20°C). Higher temperatures reduce the available working pressure.

• Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to NAHAD Industrial Hose Assembly Guidelines.
