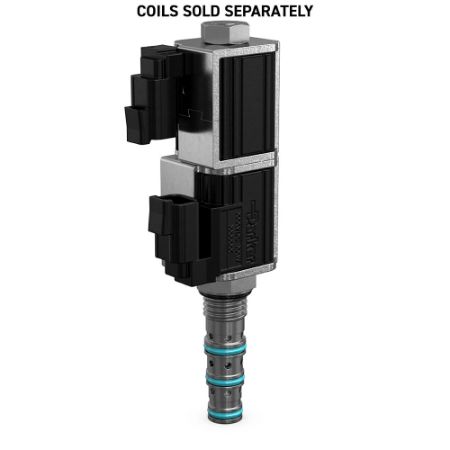

Directional Control Proportional Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s selection of 3-position, 4-way proportional directional control valves provide predictable and precise controls for applications that require bidirectional flow and controllability. These valves are capable of handling flows up to 32 lpm (8.5 gpm) and pressures as high as 350 bar (5000 psi). These valves can be used in conjunction with an external compensator finer control is required, however these valves are ideal for variable flow actuator or motor applications that need exact control with to ability to stop completely and an acceptable rate of leakage due to the inherent characteristic spool design. Parker’s 3-position, 4-way proportional directional control valves can pair with any Current Controlled Pulse Width Modulation (PWM) valve driver and can be used on a variety of mobile and industrial applications within the agriculture, construction, and manufacturing markets.
Markets:
• Agriculture
• Construction
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Mobile
Features/Benefits:
• One piece cartridge housing
• Regulates flow proportionally to input solenoid current
• All external parts zinc plated
Applications:
• Applications requiring precise controls
• Variable flow applications
• Actuator control
• Motor speed control
Additional Technical Insight:
Recommended to be used with a Current Controlled Pulse Width Modulation (PWM) valve driver.
Read More...Markets:
• Agriculture
• Construction
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Mobile
Features/Benefits:
• One piece cartridge housing
• Regulates flow proportionally to input solenoid current
• All external parts zinc plated
Applications:
• Applications requiring precise controls
• Variable flow applications
• Actuator control
• Motor speed control
Additional Technical Insight:
Recommended to be used with a Current Controlled Pulse Width Modulation (PWM) valve driver.
| Action | Part No. | Availability | Partner Available | Price | Leak Rate | Variation of Opening Point | Operation Type | Maximum Flow Rate | Body Material | Minimum Operating Temperature | Current | Installation Torque | Operating Temperature | Division | Flow Rate | Response Time | Maximum Operating Pressure | Power Consumption | Seal Material | Flow Rate Accuracy | Weight | Coil Nut Tightening Torque | Actuation Type | Filter Efficiency Rating | Maximum Kinematic Viscosity | Maximum Inlet Pressure Rating | Valve Material | For Fluid Type | Function | Hysteresis | Configuration | Frequency | Maximum Tank Pressure | Coil Type | Cavity Size | Override Functionality | Maximum Operating Temperature | Configuration | Seal Material | Maximum Inlet Pressure Rating | Flow Rate | Override Functionality |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DSP105C1M | Quote Required | $206.50/each | 10 @ 3000 PSI (210 BAR) cm3/min | 25% - 30% of Input Signal | Solenoid operated, Manually operated | 8.5 Gal/min | N/A | -35 °F | 2.33 @ 12 VDC, 1.17 @ 24 VDC A | 25 lb-ft | -37 to +93 °C | Hydraulic Systems Division | 32 L/min | 50 ms | 210 bar | 28 W | D-Ring (Standard | +/- 15% @ 75% Nominal Current and Constant DeltaP Maintained with Pressure Compensator | 0.28 kg | 3 lb-ft | Electrical, Manual | ISO 4406 18/16/13, SAE Class 4 | 45-2000 SSU (6 to 420 cSt) | 210 bar | All parts steel. All operating parts hardened steel | Mineral-based or synthetic hydraulic fluids | Proportional Directional Control | Less than 6% | Normally Closed | 100-400 Hz | 210 bar | 5/8" Super Coil High Watt (CAP) | C10-4 | Push and Pull | +200 °F | Normally Closed | D-Ring (Standard) | 3000 PSI, 210 BAR | 8.5 GAL/MIN, 32 L/MIN | Push and Pull | ||
| GP0251LN | Quote Required | $245.00/each | 10 @ 3000 PSI (210 BAR) cm3/min | 25% - 30% of Input Signal | Solenoid operated | 0.9, 1.4 Gal/min | N/A | -30 °F | 1.15 @ 12 VDC, 1.58 @ 12 VDC, 0.58 @ 24 VDC, 0.79 @ 24 VDC A | 22 lb-ft | -30 to +250 °F | Hydraulic Systems Division | 0.9, 1.4 Gal/min | 50 ms | 5000 psi | 14, 19 W | Nitrile | +/- 15% @ 75% Nominal Current and Constant DeltaP Maintained with Pressure Compensator | 0.34 lb | 4.1 Nm | Electrical | ISO 4406 18/16/13, SAE Class 4 | 45-2000 SSU (6 to 420 cSt) | 350 bar | All parts steel. All operating parts hardened steel | Mineral-based or synthetic hydraulic fluids | Proportional Directional Control | Less than 6% | Normally Closed | 100-400 Hz | 3000 psi | 1/2" Super Coil | C08-4 | N/A | +121 °C | Normally Closed | Nitrile | 5000 PSI, 350 BAR | 0.9, 1.4 GAL/MIN, 3.4, 5.3 L/MIN | N/A | ||
| GP0253L1N | 1 Limited Stock | Quote Required | $292.00/each | 10 @ 3000 PSI (210 BAR) cm3/min | 25% - 30% of Input Signal | Solenoid operated, Manually operated | 4, 5.3 L/min | N/A | -34 °C | 1.15 @ 12 VDC, 1.58 @ 12 VDC, 0.58 @ 24 VDC, 0.79 @ 24 VDC A | 22 lb-ft | -30 to +250 °F | Hydraulic Systems Division | 4, 5.3 L/min | 50 ms | 350 bar | 14, 19 W | Nitrile | +/- 15% @ 75% Nominal Current and Constant DeltaP Maintained with Pressure Compensator | 0.34 lb | 3 lb-ft | Electrical, Manual | ISO 4406 18/16/13, SAE Class 4 | 45-2000 SSU (6 to 420 cSt) | 5000 psi | All parts steel. All operating parts hardened steel | Mineral-based or synthetic hydraulic fluids | Proportional Directional Control | Less than 6% | Floating Center | 100-400 Hz | 3000 psi | 1/2" Super Coil | C08-4 | Non-Detented | +121 °C | Floating Center | Nitrile | 5000 PSI, 350 BAR | 1, 1.4 GAL/MIN, 4, 5.3 L/MIN | Non-Detented | |
| GP0253LN | Quote Required | $245.00/each | 10 @ 3000 PSI (210 BAR) cm3/min | 25% - 30% of Input Signal | Solenoid operated | 4, 5.3 L/min | N/A | -34 °C | 1.15 @ 12 VDC, 1.58 @ 12 VDC, 0.58 @ 24 VDC, 0.79 @ 24 VDC A | 22 lb-ft | -34 to +121 °C | Hydraulic Systems Division | 1, 1.4 Gal/min | 50 ms | 5000 psi | 14, 19 W | Nitrile | +/- 15% @ 75% Nominal Current and Constant DeltaP Maintained with Pressure Compensator | 0.15 kg | 4.1 Nm | Electrical | ISO 4406 18/16/13, SAE Class 4 | 45-2000 SSU (6 to 420 cSt) | 5000 psi | All parts steel. All operating parts hardened steel | Mineral-based or synthetic hydraulic fluids | Proportional Directional Control | Less than 6% | Floating Center | 100-400 Hz | 3000 psi | 1/2" Super Coil | C08-4 | N/A | +250 °F | Floating Center | Nitrile | 5000 PSI, 350 BAR | 1, 1.4 GAL/MIN, 4, 5.3 L/MIN | N/A | ||
| GP02541N | Quote Required | $238.50/each | 10 @ 3000 PSI (210 BAR) cm3/min | 25% - 30% of Input Signal | Solenoid operated, Manually operated | 4, 5 Gal/min | N/A | -30 °F | 1.15 @ 12 VDC, 1.58 @ 12 VDC, 0.58 @ 24 VDC, 0.79 @ 24 VDC A | 30 Nm | -30 to +250 °F | Hydraulic Systems Division | 4, 5 Gal/min | 50 ms | 5000 psi | 14, 19 W | Nitrile | +/- 15% @ 75% Nominal Current and Constant DeltaP Maintained with Pressure Compensator | 0.15 kg | 4.1 Nm | Electrical, Manual | ISO 4406 18/16/13, SAE Class 4 | 45-2000 SSU (6 to 420 cSt) | 5000 psi | All parts steel. All operating parts hardened steel | Mineral-based or synthetic hydraulic fluids | Proportional Directional Control | Less than 6% | Floating Center | 100-400 Hz | 3000 psi | 1/2" Super Coil | C08-4 | Non-Detented | +250 °F | Floating Center | Nitrile | 5000 PSI, 350 BAR | 4, 5 GAL/MIN, 15, 19 L/MIN | Non-Detented |
