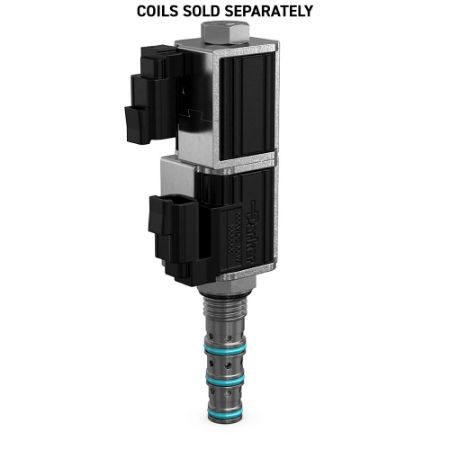

Directional Control Proportional Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s selection of 3-position, 4-way proportional directional control valves provide predictable and precise controls for applications that require bidirectional flow and controllability. These valves are capable of handling flows up to 32 lpm (8.5 gpm) and pressures as high as 350 bar (5000 psi). These valves can be used in conjunction with an external compensator finer control is required, however these valves are ideal for variable flow actuator or motor applications that need exact control with to ability to stop completely and an acceptable rate of leakage due to the inherent characteristic spool design. Parker’s 3-position, 4-way proportional directional control valves can pair with any Current Controlled Pulse Width Modulation (PWM) valve driver and can be used on a variety of mobile and industrial applications within the agriculture, construction, and manufacturing markets.
Markets:
• Agriculture
• Construction
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Mobile
Features/Benefits:
• One piece cartridge housing
• Regulates flow proportionally to input solenoid current
• All external parts zinc plated
Applications:
• Applications requiring precise controls
• Variable flow applications
• Actuator control
• Motor speed control
Additional Technical Insight:
Recommended to be used with a Current Controlled Pulse Width Modulation (PWM) valve driver.
Read More...Markets:
• Agriculture
• Construction
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Mobile
Features/Benefits:
• One piece cartridge housing
• Regulates flow proportionally to input solenoid current
• All external parts zinc plated
Applications:
• Applications requiring precise controls
• Variable flow applications
• Actuator control
• Motor speed control
Additional Technical Insight:
Recommended to be used with a Current Controlled Pulse Width Modulation (PWM) valve driver.
| Action | Part No. | Availability | Partner Available | Price | UOM | Body Material | Division | Maximum Kinematic Viscosity | Minimum Operating Temperature | Maximum Operating Temperature | Maximum Operating Pressure | Weight | Coil Type | Power Consumption | Installation Torque | Coil Nut Tightening Torque | Cavity Size | Maximum Inlet Pressure Rating | Frequency | Configuration | Actuation Type | For Fluid Type | Operation Type | Valve Material | Filter Efficiency Rating | Operating Temperature | Response Time | Maximum Tank Pressure | Function | Flow Rate | Leak Rate | Seal Material | Maximum Flow Rate | Override Functionality | Current | Hysteresis | Flow Rate Accuracy | Variation of Opening Point | Configuration | Seal Material | Maximum Inlet Pressure Rating | Flow Rate | Override Functionality |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DSP105C1M | Quote Required | $206.50/each | EA | n/a | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | -35 °F | +200 °F | 210 bar | 0.28 kg | 5/8" Super Coil High Watt (CAP) | 28 W | 25 lb-ft | 3 lb-ft | C10-4 | 210 bar | 100-400 Hz | Normally Closed | Electrical, Manual | Mineral-based or synthetic hydraulic fluids | Solenoid operated, Manually operated | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | -37 to +93 °C | 50 ms | 210 bar | Proportional Directional Control | 32 L/min | 10 @ 3000 PSI (210 BAR) cm3/min | D-Ring (Standard | 8.5 Gal/min | Push and Pull | 2.33 @ 12 VDC, 1.17 @ 24 VDC A | Less than 6% | +/- 15% @ 75% Nominal Current and Constant DeltaP Maintained with Pressure Compensator | 25% - 30% of Input Signal | Normally Closed | D-Ring (Standard) | 3000 PSI, 210 BAR | 8.5 GAL/MIN, 32 L/MIN | Push and Pull | ||
| GP0251LN | Quote Required | $245.00/each | EA | n/a | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | -30 °F | +121 °C | 5000 psi | 0.34 lb | 1/2" Super Coil | 14, 19 W | 22 lb-ft | 4.1 Nm | C08-4 | 350 bar | 100-400 Hz | Normally Closed | Electrical | Mineral-based or synthetic hydraulic fluids | Solenoid Operated | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | -30 to +250 °F | 50 ms | 3000 psi | Proportional Directional Control | 0.9, 1.4 Gal/min | 10 @ 3000 PSI (210 BAR) cm3/min | Nitrile | 0.9, 1.4 Gal/min | n/a | 1.15 @ 12 VDC, 1.58 @ 12 VDC, 0.58 @ 24 VDC, 0.79 @ 24 VDC A | Less than 6% | +/- 15% @ 75% Nominal Current and Constant DeltaP Maintained with Pressure Compensator | 25% - 30% of Input Signal | Normally Closed | Nitrile | 5000 PSI, 350 BAR | 0.9, 1.4 GAL/MIN, 3.4, 5.3 L/MIN | N/A | ||
| GP0253L1N | 1 Limited Stock | Quote Required | $292.00/each | EA | n/a | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | -34 °C | +121 °C | 350 bar | 0.34 lb | 1/2" Super Coil | 14, 19 W | 22 lb-ft | 3 lb-ft | C08-4 | 5000 psi | 100-400 Hz | Floating Center | Electrical, Manual | Mineral-based or synthetic hydraulic fluids | Solenoid operated, Manually operated | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | -30 to +250 °F | 50 ms | 3000 psi | Proportional Directional Control | 4, 5.3 L/min | 10 @ 3000 PSI (210 BAR) cm3/min | Nitrile | 4, 5.3 L/min | Non-Detented | 1.15 @ 12 VDC, 1.58 @ 12 VDC, 0.58 @ 24 VDC, 0.79 @ 24 VDC A | Less than 6% | +/- 15% @ 75% Nominal Current and Constant DeltaP Maintained with Pressure Compensator | 25% - 30% of Input Signal | Floating Center | Nitrile | 5000 PSI, 350 BAR | 1, 1.4 GAL/MIN, 4, 5.3 L/MIN | Non-Detented | |
| GP0253LN | Quote Required | $245.00/each | EA | n/a | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | -34 °C | +250 °F | 5000 psi | 0.15 kg | 1/2" Super Coil | 14, 19 W | 22 lb-ft | 4.1 Nm | C08-4 | 5000 psi | 100-400 Hz | Floating Center | Electrical | Mineral-based or synthetic hydraulic fluids | Solenoid Operated | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | -34 to +121 °C | 50 ms | 3000 psi | Proportional Directional Control | 1, 1.4 Gal/min | 10 @ 3000 PSI (210 BAR) cm3/min | Nitrile | 4, 5.3 L/min | n/a | 1.15 @ 12 VDC, 1.58 @ 12 VDC, 0.58 @ 24 VDC, 0.79 @ 24 VDC A | Less than 6% | +/- 15% @ 75% Nominal Current and Constant DeltaP Maintained with Pressure Compensator | 25% - 30% of Input Signal | Floating Center | Nitrile | 5000 PSI, 350 BAR | 1, 1.4 GAL/MIN, 4, 5.3 L/MIN | N/A | ||
| GP02541N | Quote Required | $238.50/each | EA | n/a | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | -30 °F | +250 °F | 5000 psi | 0.15 kg | 1/2" Super Coil | 14, 19 W | 30 Nm | 4.1 Nm | C08-4 | 5000 psi | 100-400 Hz | Floating Center | Electrical, Manual | Mineral-based or synthetic hydraulic fluids | Solenoid operated, Manually operated | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | -30 to +250 °F | 50 ms | 3000 psi | Proportional Directional Control | 4, 5 Gal/min | 10 @ 3000 PSI (210 BAR) cm3/min | Nitrile | 4, 5 Gal/min | Non-Detented | 1.15 @ 12 VDC, 1.58 @ 12 VDC, 0.58 @ 24 VDC, 0.79 @ 24 VDC A | Less than 6% | +/- 15% @ 75% Nominal Current and Constant DeltaP Maintained with Pressure Compensator | 25% - 30% of Input Signal | Floating Center | Nitrile | 5000 PSI, 350 BAR | 4, 5 GAL/MIN, 15, 19 L/MIN | Non-Detented |
