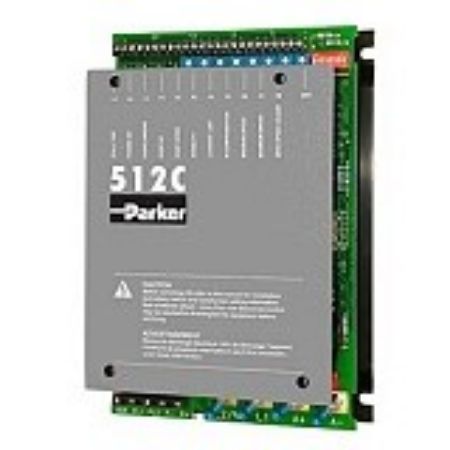

DC Motor Speed Controllers - DC512C Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Isolated control circuitry, a host of features, and extremely linear control loop make the 512C ideal for single motor or multi-drive applications. The 512C is suitable for controlling permanent magnet or field wound DC motors in speed or torque control, and can be used “open loop” with armature voltage feedback, or with DC tach feedback for enhanced regulation and speed range. Chassis mount, IP00 rating.
Markets:
• Industrial Markets
• Packaging
• Food Processing
Features and Benefits:
• Fully isolated control circuits
• 110 V ... 415 V supply selection by jumpers
• CE marked and EMC compliant
• Multiple input speed and current setpoints
• Zero speed and drive healthy outputs
• Extremely linear control loops
Applications:
• Centrifugal Fans and Pumps
• Extruders and Mixers
• Converting Machines
• Conveyors
Standards
• CE Marked to EN50178 (Safety, Low Voltage Directive)
• CE Marked to EN61800-3 (EMC Directive) with external filter
• NRTL Listed to US Standard UL508C
• NRTL listed to Canadian standard C22.2#14
| Action | Part No. | Availability | Partner Available | Price | UOM | Division | Brand | Product Type | Drive Axis Type | Modes of Control | Compatible Motor Type | Communication Interface | Overload Rating | Specifications Met | Input Voltage | Output Power | Product Series | Operating Altitude | Operating Temperature | Compatible Feedback Device | Continuous Output Current Rating | Output Current Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 512C/040/000 | Quote Required | TBD | Electronic Motion and Controls Division | Parker | DC Drive | Single Axis Technology | Non-Regenerative | DC Brushed Servo | n/a | 150 % for 60s | UL Listed | 1*230 | 0.3 to 0.9 | DC51n | up to 1000 m ASL | 0 to 40 | Tachometer | 4 | 4A | |||
| 512C/080/000 | Quote Required | $0.01 | EA | Electronic Motion and Controls Division | Parker | DC Drive | Single Axis Technology | Non-Regenerative | DC Brushed Servo | n/a | 150 % for 60s | CE (EMC & LVD) | 1*110 | 0.6 to 1.8 | DC51n | up to 1000 m ASL | 0 to 40 | Armature Voltage | 8 | 8A | ||
| 512C/160/000 | Quote Required | $0.62 | EA | Electronic Motion and Controls Division | Parker | DC Drive | Single Axis Technology | Non-Regenerative | DC Brushed Servo | n/a | 150 % for 60s | CE (EMC & LVD) | 1*110 | 1.2 to 3.7 | DC51n | up to 1000 m ASL | 0 to 40 | Armature Voltage | 16 | 16A | ||
| 512C/320/000 | Quote Required | TBD | Electronic Motion and Controls Division | Parker | DC Drive | Single Axis Technology | Non-Regenerative | DC Brushed Servo | n/a | 150 % for 60s | CE (EMC & LVD) | 1*110 | 2.5 to 7.5 | DC51n | up to 1000 m ASL | 0 to 40 | Armature Voltage | 32 | 32A |
