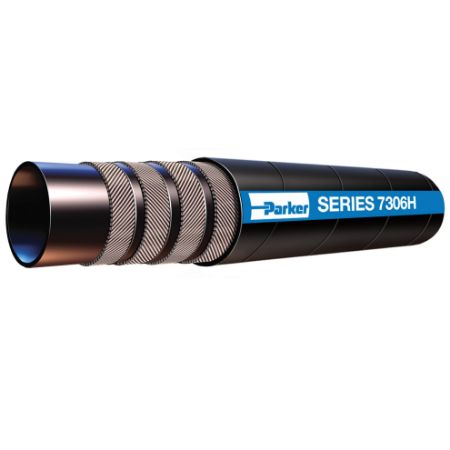

DAY-FLO® Heavy Duty Water Discharge Hose, Series 7306H

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker's Series 7306H Day-Flo Heavy Duty Water Discharge Hose provides excellent medium pressure, heavy duty service across multiple applications. The medium wall thickness provides durable service.

Markets:
• Agriculture
• Construction
• General Industrial
• Surface Mining

Features/Benefits:
• Tube: Black EPDM for versatile service to 212°F.
• Reinforcement: Multiple textile plies for strength and durability.
• Cover: Black EPDM for resistance to abrasion, cuts, gouging, scuffs and weathering resistance.

Applications:
- media
• Alkalies
• Brine
• Glycols
• Herbicides
• Mild chemicals
• Slurries
• Water
- usage
• Irrigation
• Pumps

Safety/Technical:
• Design Factor: 4:1
• Click here to link to CrimpSource® for current crimp specifications.

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	Cover Color	Weight	Inside Diameter	Minimum Bend Radius	Application	Length per Package	Cover Structure	Cover Material	Hose Inner Tube Material	Hose Reinforcement Material	Package Type	Media	Division	Specifications Met	Minimum Operating Temperature	Maximum Operating Temperature	Maximum Operating Pressure	Outside Diameter	Maximum Working Pressure (psi)	Hose I.D. (inch)
7306H-1500	Quote Required	Quote Required	TBD	Black	0.85	1-1/2	n/a	Water	100	Wrapped	Ethylene Propylene Diene Monomer (EPDM)	Ethylene Propylene Diene Monomer (EPDM)	4 Plies of Textile	Coil	Coolants (Glycol)	Hose Products Division	N/A	-30	212	200	2.032	200	1-1/2
7306H-2000	Quote Required	Quote Required	TBD	Black	1.10	2	n/a	Water	100	Wrapped	Ethylene Propylene Diene Monomer (EPDM)	Ethylene Propylene Diene Monomer (EPDM)	4 Plies of Textile	Coil	Coolants (Glycol)	Hose Products Division	N/A	-30	212	200	2.536	200	2
7306H-2500	Quote Required	Quote Required	TBD	Black	1.34	2-1/2	n/a	Water	100	Wrapped	Ethylene Propylene Diene Monomer (EPDM)	Ethylene Propylene Diene Monomer (EPDM)	4 Plies of Textile	Coil	Coolants (Glycol)	Hose Products Division	N/A	-30	212	200	3.050	200	2-1/2
7306H-3000	Quote Required	Quote Required	TBD	Black	1.59	3	n/a	Water	100	Wrapped	Ethylene Propylene Diene Monomer (EPDM)	Ethylene Propylene Diene Monomer (EPDM)	4 Plies of Textile	Coil	Coolants (Glycol)	Hose Products Division	N/A	-30	212	200	3.550	200	3
7306H-4000	Quote Required	Quote Required	TBD	Black	2.10	4	n/a	Water	100	Wrapped	Ethylene Propylene Diene Monomer (EPDM)	Ethylene Propylene Diene Monomer (EPDM)	4 Plies of Textile	Coil	Coolants (Glycol)	Hose Products Division	N/A	-30	212	200	4.556	200	4
7306H-5000	Quote Required	Quote Required	TBD	Black	2.75	5	n/a	Water	100	Wrapped	Ethylene Propylene Diene Monomer (EPDM)	Ethylene Propylene Diene Monomer (EPDM)	4 Plies of Textile	Coil	Coolants (Glycol)	Hose Products Division	N/A	-30	212	200	5.582	200	5
7306H-6000	Quote Required	Quote Required	TBD	Black	3.30	6	n/a	Water	100	Wrapped	Ethylene Propylene Diene Monomer (EPDM)	Ethylene Propylene Diene Monomer (EPDM)	4 Plies of Textile	Coil	Coolants (Glycol)	Hose Products Division	N/A	-30	212	200	6.646	200	6
7306H-8000	Quote Required	Quote Required	TBD	Black	4.35	8	n/a	Water	100	Wrapped	Ethylene Propylene Diene Monomer (EPDM)	Ethylene Propylene Diene Monomer (EPDM)	4 Plies of Textile	Coil	Coolants (Glycol)	Hose Products Division	N/A	-30	212	200	8.644	200	8
