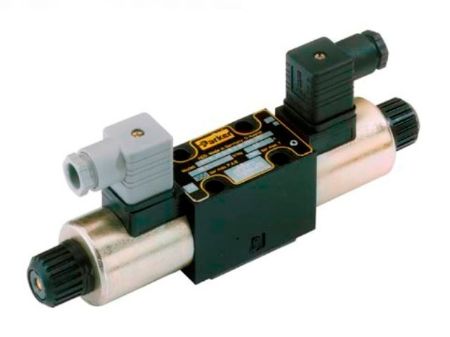

D1VW Series - Single solenoid, 2 position, spring offset P > B
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.
D1VW Series - Single solenoid, 2 position, spring offset P > B - NFPA D03 (CETOP 3, NG 6)
Read More...| Action | Part No. | Availability | Partner Available | Price | UOM | UOM | Seals | Solenoid Connection | Solenoid Voltage | Parker Spool Code | Parker Valve Style Code | Max Flow (at 3000 PSI) | Pkg Qty | Spool Type | Parker Group | Parker Division | Operator Type | Series | Max Pressure | Seals | Solenoid Connection | Solenoid Voltage | Parker Spool Code | Parker Valve Style Code | Spool Type | Valve Style | Subplate Pattern | Max Flow (at 3000 PSI) | Coil Option | Coil Option | Valve Variation | Valve Variation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D1VW020HNJC | Quote Required | $436.50/each | EA | EA | Buna-N (Nitrile) | Conduit | 24 VDC | 20 | H | 18 GPM (69 LPM) | 1 | P > A, B > T | Hydraulic | Hydraulic Valve | Solenoid | D1VW | 5000 PSI (345 Bar) | Buna-N (Nitrile) | Conduit | 24 VDC | 20 | H | P > A, B > T | Single solenoid, 2 position, spring offset P > B | NFPA D03 (CETOP 3, NG 6) | 18 GPM (69 LPM) | ||||||
| D1VW020HNJW | Quote Required | 3 In Stock | $406.50/each | EA | EA | Buna-N (Nitrile) | DIN Style (43650) w/o Plug | 24 VDC | 20 | H | 18 GPM (69 LPM) | 1 | P > A, B > T | Hydraulic | Hydraulic Valve | Solenoid | D1VW | 5000 PSI (345 Bar) | Buna-N (Nitrile) | DIN Style (43650) w/o Plug | 24 VDC | 20 | H | P > A, B > T | Single solenoid, 2 position, spring offset P > B | NFPA D03 (CETOP 3, NG 6) | 18 GPM (69 LPM) | |||||
| D1VW020HNYC | Quote Required | $436.50/each | EA | EA | Buna-N (Nitrile) | Conduit | 120/60 - 110/50 VAC | 20 | H | 18 GPM (69 LPM) | 1 | P > A, B > T | Hydraulic | Hydraulic Valve | Solenoid | D1VW | 5000 PSI (345 Bar) | Buna-N (Nitrile) | Conduit | 120/60 - 110/50 VAC | 20 | H | P > A, B > T | Single solenoid, 2 position, spring offset P > B | NFPA D03 (CETOP 3, NG 6) | 18 GPM (69 LPM) | ||||||
| D1VW020HNYCF | Quote Required | 2 Limited Stock | $436.50/each | EA | EA | Buna-N (Nitrile) | Conduit | 120/60 - 110/50 VAC | 20 | H | 12 GPM (46 LPM) | 1 | P > A, B > T | Hydraulic | Hydraulic Valve | Solenoid | D1VW | 5000 PSI (345 Bar) | Buna-N (Nitrile) | Conduit | 120/60 - 110/50 VAC | 20 | H | P > A, B > T | Single solenoid, 2 position, spring offset P > B | NFPA D03 (CETOP 3, NG 6) | 12 GPM (46 LPM) | Low Watt | Low Watt | |||
| D1VW020HNYG5 | Quote Required | $446.25/each | EA | EA | Buna-N (Nitrile) | Plug-In Conduit Box | 120/60 - 110/50 VAC | 20 | H | 18 GPM (69 LPM) | 1 | P > A, B > T | Hydraulic | Hydraulic Valve | Solenoid | D1VW | 5000 PSI (345 Bar) | Buna-N (Nitrile) | Plug-In Conduit Box | 120/60 - 110/50 VAC | 20 | H | P > A, B > T | Single solenoid, 2 position, spring offset P > B | NFPA D03 (CETOP 3, NG 6) | 18 GPM (69 LPM) | Signal Lights | Signal Lights | ||||
| D1VW020HNYW | Quote Required | $406.50/each | EA | EA | Buna-N (Nitrile) | DIN Style (43650) w/o Plug | 120/60 - 110/50 VAC | 20 | H | 18 GPM (69 LPM) | 1 | P > A, B > T | Hydraulic | Hydraulic Valve | Solenoid | D1VW | 5000 PSI (345 Bar) | Buna-N (Nitrile) | DIN Style (43650) w/o Plug | 120/60 - 110/50 VAC | 20 | H | P > A, B > T | Single solenoid, 2 position, spring offset P > B | NFPA D03 (CETOP 3, NG 6) | 18 GPM (69 LPM) | ||||||
| D1VW020HNYWF | Quote Required | $406.50/each | EA | EA | Buna-N (Nitrile) | DIN Style (43650) w/o Plug | 120/60 - 110/50 VAC | 20 | H | 12 GPM (46 LPM) | 1 | P > A, B > T | Hydraulic | Hydraulic Valve | Solenoid | D1VW | 5000 PSI (345 Bar) | Buna-N (Nitrile) | DIN Style (43650) w/o Plug | 120/60 - 110/50 VAC | 20 | H | P > A, B > T | Single solenoid, 2 position, spring offset P > B | NFPA D03 (CETOP 3, NG 6) | 12 GPM (46 LPM) | Low Watt | Low Watt |
