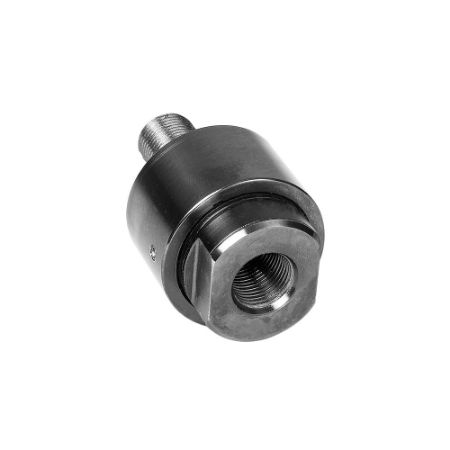

Coupler Alignment Aids (Americas)

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Linear Coupler alignment aids are cylinder mounting accessories for hydraulic and pneumatic cylinders.

Markets:
• Industrial
• Energy
• Natural Resources
• Government
• Processing

Linear Coupler Alignments Features and Benefits:
• Maximum reliability for trouble-free operation, long life and lower operating costs
• Increased cylinder life by reducing wear on Piston and Rod bearings
• Simplifying Cylinder installation and reducing assembly costs
• Increase Rod Bearing and Rod Seal life for lower maintenance costs

Applications:
• Energy Production, Development and Service
• Power Generation
• Defense
• Government (Non-Defense)
• Factory Automation
• Machine Tools
• Molding
• Vehicle Assembly Facilities
• Mining
• Oil and Gas
• Food & Beverage
• Industrial Chemical Processing
• Lumber & Wood
• Plastic Processing

Learn more about the Parker coupler alignment aids by viewing the Cylinder Mounting Accessories catalog under related documents.

For cylinder part numbers, serial number look-ups and seal kits please contact us or your local distributor.

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	Thread Size	Load Capacity	Division	Load Capacity	Thread Size
1337390125	Quote Required	Quote Required	TBD	1-1/14"-12 inch	30500 lbs	Cylinder Division	30500 LB	1 1/14-12 INCH
1337390150	Quote Required	Quote Required	$825.75/each	1-1/2"-12 inch	45750 lbs	Cylinder Division	45750 LB	1 1/2-12 INCH
1337390175	Quote Required	Quote Required	$825.75/each	1-3/4"-12 inch	58350 lbs	Cylinder Division	58350 LB	1 3/4-12 INCH
1337390188	Quote Required	Quote Required	$1,225.70/each	1-7/8"-12 inch	67550 lbs	Cylinder Division	67550 LB	1 7/8-12 INCH
1337390200	Quote Required	Quote Required	$1,225.70/each	2"-12 inch	77450 lbs	Cylinder Division	77450 LB	2-12 INCH
1337390225	Quote Required	Quote Required	$2,619.30/each	2-1/4"-12 inch	99250 lbs	Cylinder Division	99250 LB	2 1/4-12 INCH
1337390250	Quote Required	Quote Required	$3,357.20/each	2-1/2"-12 inch	123750 lbs	Cylinder Division	123750 LB	2 1/2-12 INCH
1337390275	Quote Required	Quote Required	$3,357.20/each	2-3/4"-12 inch	150950 lbs	Cylinder Division	150950 LB	2 3/4-12 INCH
1337390300	Quote Required	Quote Required	$3,357.20/each	3"-12 inch	180850 lbs	Cylinder Division	180850 LB	3-12 INCH
1337390325	Quote Required	Quote Required	$7,885.55/each	3-1/4"-12 inch	218450 lbs	Cylinder Division	218450 LB	3 1/4-12 INCH
1337390425	Quote Required	Quote Required	TBD	4-1/4"-12 inch	370850 lbs	Cylinder Division	370850 LB	4 1/4-12 INCH
1347570031	Quote Required	Quote Required	$96.15/each	5/16"-24 inch	1200 lbs	Cylinder Division	1200 LB	5/16-24 INCH
1347570038	Quote Required	2 Limited Stock	$105.54/each	3/8"-24 inch	2425 lbs	Cylinder Division	2425 LB	3/8-24 INCH
1347570044	3 In Stock	13 In Stock	$129.31/each	7/16-20 inch	3250 lbs	Cylinder Division	3250 LB	7/16-20 INCH
1347570050	Quote Required	1 Limited Stock	$155.23/each	1/2"-20 inch	4450 lbs	Cylinder Division	4450 LB	1/2-20 INCH
1347570063	Quote Required	Quote Required	$197.60/each	5/8-18 inch	6800 lbs	Cylinder Division	6800 LB	5/8-18 INCH
1347570075	9 In Stock	14 In Stock	$197.60/each	3/4"-16 inch	9050 lbs	Cylinder Division	9050 LB	3/4-16 INCH
1347570088	Quote Required	Quote Required	$143.86/each	7/8-14 inch	14450 lbs	Cylinder Division	14450 LB	7/8-14 INCH
1347570100	Quote Required	2 Limited Stock	$308.67/each	1"-14 inch	19425 lbs	Cylinder Division	19425 LB	1-14 INCH
1347570125	Quote Required	3 In Stock	$310.05/each	1-1/14"-12 inch	30500 lbs	Cylinder Division	30500 LB	1 1/14-12 INCH
