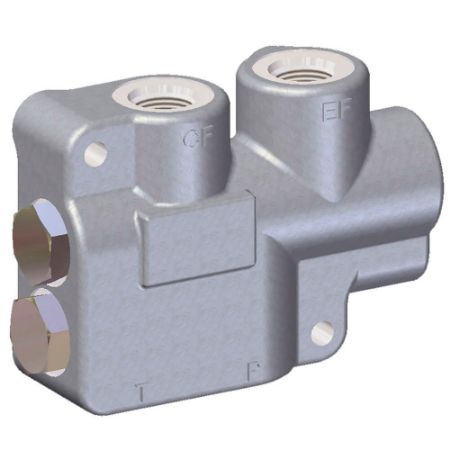

Constant Volume Priority Flow Control Valve – CFD Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker’s CFD Controlled Flow/Priority Type Flow Divider divides pump hydraulic oil into two separate flows. One, the pressure compensated controlled flow (has Priority), and the other, a usable flow which is in excess of the controlled clow. The controlled flow rate is determined by the metering spool that is installed.

Markets:
• Aerial
• Agricultural Machinery
• Construction Equipment
• Defense
• Forestry Equipment
• Marine
• Material Handling Equipment
• Mining
• Misc Transportation
• Oil & Gas
• Other Mobile
• Other Natural Resources
• Rail
• Refuse
• Turf Equipment
• Vocational and Municipal Equipment

Features/Benefits:
• Fixed flow rate
• Hardened metering spool
• High-tensile, cast iron body
• Cross drilled spool provides extremely accurate metering
• Standard porting options are SAE-10, 1/2” NPT, and 3/4” NPT
• The CFD is rated at 3000 PSI and the maximum recommend input flow is 20 GPM
• The fixed Controlled Flow rate is available in six standard options ranging from 1 to 5 GPM

Applications:
• Suitable for various mobile applications
