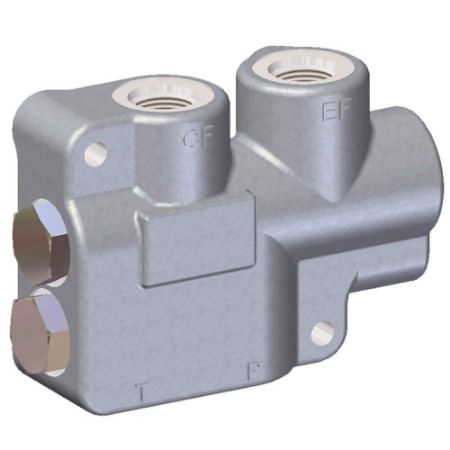

Constant Volume Priority Flow Control Valve – CFD Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s CFD Controlled Flow/Priority Type Flow Divider divides pump hydraulic oil into two separate flows. One, the pressure compensated controlled flow (has Priority), and the other, a usable flow which is in excess of the controlled clow. The controlled flow rate is determined by the metering spool that is installed.
Markets:
• Aerial
• Agricultural Machinery
• Construction Equipment
• Defense
• Forestry Equipment
• Marine
• Material Handling Equipment
• Mining
• Misc Transportation
• Oil & Gas
• Other Mobile
• Other Natural Resources
• Rail
• Refuse
• Turf Equipment
• Vocational and Municipal Equipment
Features/Benefits:
• Fixed flow rate
• Hardened metering spool
• High-tensile, cast iron body
• Cross drilled spool provides extremely accurate metering
• Standard porting options are SAE-10, 1/2” NPT, and 3/4” NPT
• The CFD is rated at 3000 PSI and the maximum recommend input flow is 20 GPM
• The fixed Controlled Flow rate is available in six standard options ranging from 1 to 5 GPM
Applications:
• Suitable for various mobile applications
Read More...Markets:
• Aerial
• Agricultural Machinery
• Construction Equipment
• Defense
• Forestry Equipment
• Marine
• Material Handling Equipment
• Mining
• Misc Transportation
• Oil & Gas
• Other Mobile
• Other Natural Resources
• Rail
• Refuse
• Turf Equipment
• Vocational and Municipal Equipment
Features/Benefits:
• Fixed flow rate
• Hardened metering spool
• High-tensile, cast iron body
• Cross drilled spool provides extremely accurate metering
• Standard porting options are SAE-10, 1/2” NPT, and 3/4” NPT
• The CFD is rated at 3000 PSI and the maximum recommend input flow is 20 GPM
• The fixed Controlled Flow rate is available in six standard options ranging from 1 to 5 GPM
Applications:
• Suitable for various mobile applications
| Action | Part No. | Availability | Partner Available | Price | Minimum Operating Temperature | Connection Type | Division | Seal Material | Maximum Operating Temperature | Weight | Body Material | Maximum Flow Rate | Maximum Operating Pressure | Configuration | Function | Actuation Type | Flow Rate | Connection Size | Flow Rate (gpm) | Connection Size | Pressure Relief Valve |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CFD-10-1 | Quote Required | TBD | -40 | SAE | Hydraulic Valve Systems Division | n/a | 200 | 8 | Cast Iron | n/a | 2500 | Inline | Flow Control | Hydraulic Pressure | 3.75 | 10 | 1 | SAE 8 / SAE 10 | Standard | ||
| CFD-10-1.5 | Quote Required | TBD | -40 °F | SAE | Hydraulic Valve Systems Division | n/a | 200 °F | 8 lb | Cast Iron | n/a | 2500 psi | Inline | Flow Control | Hydraulic Pressure | 5.63 L/min | 10 mm | 1.5 | SAE 8 / SAE 10 | Standard | ||
| CFD-10-1.5-NR | Quote Required | TBD | -40 | SAE | Hydraulic Valve Systems Division | n/a | 200 | 8 | Cast Iron | n/a | 2500 | Inline | Flow Control | Hydraulic Pressure | 5.63 | 10 | 1.5 | SAE 8 / SAE 10 | No Relief | ||
| CFD-10-1-NR | Quote Required | TBD | -40 | SAE | Hydraulic Valve Systems Division | n/a | 200 | 8 | Cast Iron | n/a | 2500 | Inline | Flow Control | Hydraulic Pressure | 3.75 | 10 | 1 | SAE 8 / SAE 10 | No Relief | ||
| CFD-10-2 | Quote Required | TBD | -40 °F | SAE | Hydraulic Valve Systems Division | n/a | 200 °F | 3.6 kg | Cast Iron | n/a | 177 bar | Inline | Flow Control | Hydraulic Pressure | 2 Gal/min | 8 mm | 2 | SAE 8 / SAE 10 | Standard | ||
| CFD-10-2-NR | Quote Required | TBD | -40 | SAE | Hydraulic Valve Systems Division | n/a | 200 | 8 | Cast Iron | n/a | 2500 | Inline | Flow Control | Hydraulic Pressure | 2 | 10 | 2 | SAE 8 / SAE 10 | No Relief | ||
| CFD-10-3 | Quote Required | TBD | -40 °F | SAE | Hydraulic Valve Systems Division | n/a | 200 °F | 8 lb | Cast Iron | n/a | 177 bar | Inline | Flow Control | Hydraulic Pressure | 3 Gal/min | 10 mm | 3 | SAE 8 / SAE 10 | Standard | ||
| CFD-10-3-NR | Quote Required | TBD | -40 | SAE | Hydraulic Valve Systems Division | n/a | 200 | 8 | Cast Iron | n/a | 2500 | Inline | Flow Control | Hydraulic Pressure | 3 | 10 | 3 | SAE 8 / SAE 10 | No Relief | ||
| CFD-10-4 | Quote Required | TBD | -40 °F | SAE | Hydraulic Valve Systems Division | n/a | 200 °F | 8 lb | Cast Iron | n/a | 2500 psi | Inline | Flow Control | Hydraulic Pressure | 4 Gal/min | 10 mm | 4 | SAE 8 / SAE 10 | Standard | ||
| CFD-10-4-NR | Quote Required | TBD | -40 | SAE | Hydraulic Valve Systems Division | n/a | 200 | 8 | Cast Iron | n/a | 2500 | Inline | Flow Control | Hydraulic Pressure | 4 | 10 | 4 | SAE 8 / SAE 10 | No Relief | ||
| CFD-10-5 | Quote Required | TBD | -40 °F | SAE | Hydraulic Valve Systems Division | n/a | 200 °F | 8 lb | Cast Iron | n/a | 177 bar | Inline | Flow Control | Hydraulic Pressure | 5 Gal/min | 10 mm | 5 | SAE 8 / SAE 10 | Standard | ||
| CFD-10-5-NR | Quote Required | TBD | -40 | SAE | Hydraulic Valve Systems Division | n/a | 200 | 8 | Cast Iron | n/a | 2500 | Inline | Flow Control | Hydraulic Pressure | 5 | 10 | 5 | SAE 8 / SAE 10 | No Relief | ||
| CFD-50-1 | Quote Required | TBD | -40 | NPT | Hydraulic Valve Systems Division | n/a | 200 | 8 | Cast Iron | n/a | 2000 | Inline | Flow Control | Hydraulic Pressure | 1 | 3/8 to 1/2 | 1 | 3/8 NPTF / 1/2 NPTF | Standard | ||
| CFD-50-1.5 | Quote Required | TBD | -40 °F | NPT | Hydraulic Valve Systems Division | n/a | 200 °F | 3.6 kg | Cast Iron | n/a | 2000 psi | Inline | Flow Control | Hydraulic Pressure | 1.5 Gal/min | 3/8 to 1/2 inch | 1.5 | 3/8 NPTF / 1/2 NPTF | Standard | ||
| CFD-50-1.5-NR | Quote Required | TBD | -40 | NPT | Hydraulic Valve Systems Division | n/a | 200 | 8 | Cast Iron | n/a | 2000 | Inline | Flow Control | Hydraulic Pressure | 1.5 | 3/8 to 1/2 | 1.5 | 3/8 NPTF / 1/2 NPTF | No Relief | ||
| CFD-50-1-NR | Quote Required | TBD | -40 | NPT | Hydraulic Valve Systems Division | n/a | 200 | 8 | Cast Iron | n/a | 2000 | Inline | Flow Control | Hydraulic Pressure | 1 | 3/8 to 1/2 | 1 | 3/8 NPTF / 1/2 NPTF | No Relief | ||
| CFD-50-2 | Quote Required | TBD | -40 °F | NPT | Hydraulic Valve Systems Division | n/a | 200 °F | 8 lb | Cast Iron | n/a | 2000 psi | Inline | Flow Control | Hydraulic Pressure | 2 Gal/min | 3/8 to 1/2 inch | 2 | 3/8 NPTF / 1/2 NPTF | Standard | ||
| CFD-50-2-NR | Quote Required | TBD | -40 | NPT | Hydraulic Valve Systems Division | n/a | 200 | 8 | Cast Iron | n/a | 2000 | Inline | Flow Control | Hydraulic Pressure | 2 | 3/8 to 1/2 | 2 | 3/8 NPTF / 1/2 NPTF | No Relief | ||
| CFD-50-3 | Quote Required | TBD | -40 °F | NPT | Hydraulic Valve Systems Division | n/a | 200 °F | 8 lb | Cast Iron | n/a | 2000 psi | Inline | Flow Control | Hydraulic Pressure | 3 Gal/min | 3/8 to 1/2 inch | 3 | 3/8 NPTF / 1/2 NPTF | Standard | ||
| CFD-50-3-NR | Quote Required | TBD | -40 | NPT | Hydraulic Valve Systems Division | n/a | 200 | 8 | Cast Iron | n/a | 2000 | Inline | Flow Control | Hydraulic Pressure | 3 | 3/8 to 1/2 | 3 | 3/8 NPTF / 1/2 NPTF | No Relief |
