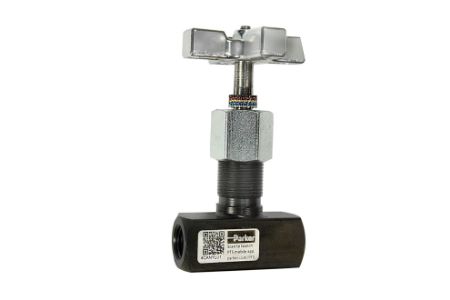

Colorflow In-Line Precision Needle Valve – MV Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s Colorflow MV series valves allow extremely close control of fluids used in actuating and governing equipment. The needle allows fine adjustment at low flow by using the first three turns of the adjusting knob. The next three turns open the valve to full flow, and provides standard throttling adjustment.
Markets:
• Factory Automation
• Machine Tools
• Marine
• Material Handling
• Mining
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Molding
• Oil &Gas
• Power Generation
• Vehicle Assembly Facilities
Features/Benefits:
• Port options include NPT and SAE
• Material offerings are brass and steel
• Available in an in-line or right angle style
• Port sizes are available in 7 sizes from 1/8” to 1”
• MVK mounting kits make panel mounting simple
• High efficiency o-ring stem seal eliminates packing
• Fine and micro-fine needles available for extremely fine control
• The exclusive “Colorflow” color-band provide an accurate visual indication of setting
Applications:
• Suitable for general hydraulic applications
Read More...Markets:
• Factory Automation
• Machine Tools
• Marine
• Material Handling
• Mining
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Molding
• Oil &Gas
• Power Generation
• Vehicle Assembly Facilities
Features/Benefits:
• Port options include NPT and SAE
• Material offerings are brass and steel
• Available in an in-line or right angle style
• Port sizes are available in 7 sizes from 1/8” to 1”
• MVK mounting kits make panel mounting simple
• High efficiency o-ring stem seal eliminates packing
• Fine and micro-fine needles available for extremely fine control
• The exclusive “Colorflow” color-band provide an accurate visual indication of setting
Applications:
• Suitable for general hydraulic applications
| Action | Part No. | Availability | Partner Available | Price | Brand | Mounting Style | Configuration | Function | Flow Rate | Actuation Type | Seal Material | Maximum Operating Pressure | Connection Size | Maximum Flow Rate | Body Material | Minimum Operating Temperature | Connection Type | Division | Maximum Operating Temperature | Needle Type | Media | Maximum Operating Temperature | Actuation Type | Mounting Style | Connection Size | Connection Type | Function | Minimum Operating Temperature | Configuration | Needle Type | Maximum Operating Pressure | Maximum Flow Rate | Seal Material | Flow Rate | Body Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MV1200S | Quote Required | 38 In Stock | $191.25/each | Colorflow | In-line | In-line | Metering Valve | N/A | Manual | Nitrile | 5000 psi | 3/4 | 25 Gal/min | Steel | +121° °C | NPT | Hydraulic Valve Systems Division | +250 °F | Standard; 30° Taper | Oil | N/A | Manual | inline | 3/4 | NPT | Metering Valve | -40 | In-line | Standard; 30° Taper | N/A | 25 | Nitrile | n/a | Steel | |
| MV1200S-V | Quote Required | 1 Limited Stock | $202.50/each | Colorflow | In-line | In-line | Metering Valve | N/A | Manual | Fluorocarbon | 345 bar | 3/4 | 95 L/min | Steel | -26° °C | NPT | Hydraulic Valve Systems Division | 400 °F | Standard; 30° Taper | Oil | N/A | Manual | inline | 3/4 | NPT | Metering Valve | -15 | Standard; 30° Taper | N/A | 25 | Fluorocarbon | n/a | Steel | ||
| MV1220S | Quote Required | $323.25/each | Colorflow | In-line | In-line | Metering Valve | N/A | Manual | Nitrile | 345 bar | 12 | 95 L/min | Steel | -40° °F | SAE | Hydraulic Valve Systems Division | +250 °F | Standard; 30° Taper | Oil | N/A | Manual | inline | 12 | SAE | Metering Valve | -40 | Standard; 30° Taper | N/A | 25 | Nitrile | n/a | Steel | |||
| MV1220S-V | Quote Required | $334.50/each | Colorflow | In-line | In-line | Metering Valve | N/A | Manual | Fluorocarbon | 5000 psi | 12 | 95 L/min | Steel | -26° °C | SAE | Hydraulic Valve Systems Division | +250 °C | Standard; 30° Taper | Oil | N/A | Manual | inline | 12 | SAE | Metering Valve | -15 | Standard; 30° Taper | N/A | 25 | Fluorocarbon | n/a | Steel | |||
| MV1261S | Quote Required | $366.75/each | Colorflow | In-line | In-line | Metering Valve | N/A | Manual | Nitrile | 413 bar | 3/4 | 25 Gal/min | Steel | +121° °C | NPT | Hydraulic Valve Systems Division | -40 °C | Standard; 30° Taper | Oil | N/A | Manual | Right Angle | 3/4 | NPT | Metering Valve | -40 | Standard; 30° Taper | N/A | 25 | Nitrile | n/a | Steel | |||
| MV-1600S-V | Quote Required | $413.25/each | Colorflow | In-line | In-line | Metering Valve | N/A | Manual | Fluorocarbon | 3000 psi | 1 | 40 Gal/min | Steel | -15° °F | NPT | Hydraulic Valve Systems Division | 400 °F | Standard; 30° Taper | Oil | N/A | Manual | inline | 1 | NPT | Metering Valve | -15 | Standard; 30° Taper | N/A | 40 | Fluorocarbon | n/a | Steel | |||
| MV200S | Quote Required | 15 In Stock | $92.25/each | Colorflow | In-line | In-line | Metering Valve | N/A | Manual | Nitrile | 5000 psi | 1/8 | 3 Gal/min | Steel | +121° °C | NPT | Hydraulic Valve Systems Division | -40 °C | Standard; 30° Taper | Oil | N/A | Manual | inline | 1/8 | NPT | Metering Valve | -40 | Standard; 30° Taper | N/A | 3 | Nitrile | n/a | Steel | ||
| MV400B | Quote Required | TBD | Colorflow | In-line | In-line | Metering Valve | N/A | Manual | Nitrile | 2000 | 1/4 | 19 | Steel | -40° | NPT | Hydraulic Valve Systems Division | +250 | Standard; 30° Taper | Air, Oil | N/A | Manual | inline | 1/4 | NPT | Metering Valve | -40 | Standard; 30° Taper | N/A | 5 | Nitrile | n/a | BRASS | |||
| MV400S | 3 In Stock | 206 In Stock | $64.50/each | Colorflow | In-line | In-line | Metering Valve | N/A | Manual | Nitrile | 345 bar | 1/4 | 19 L/min | Steel | -40° °F | NPT | Hydraulic Valve Systems Division | +250 °F | Standard; 30° Taper | Oil | N/A | Manual | inline | 1/4 | NPT | Metering Valve | -40 | Standard; 30° Taper | N/A | 5 | Nitrile | n/a | Steel | ||
| MV400S2 | Quote Required | $114.00/each | Colorflow | In-line | In-line | Metering Valve | N/A | Manual | Nitrile | 345 bar | 1/4 | 5 Gal/min | Steel | +121° °C | NPT | Hydraulic Valve Systems Division | +250 °F | Fine | Oil | N/A | Manual | inline | 1/4 | NPT | Metering Valve | -40 | Fine | N/A | 2.8 | Nitrile | n/a | Steel | |||
| MV400S3 | Quote Required | 8 In Stock | $136.50/each | Colorflow | In-line | In-line | Metering Valve | N/A | Manual | Nitrile | 345 bar | 1/4 | 19 L/min | Steel | +121° °C | NPT | Hydraulic Valve Systems Division | +250 °F | Micro-fine | Oil | N/A | Manual | inline | 1/4 | NPT | Metering Valve | -40 | Micro-Fine | N/A | .5 | Nitrile | n/a | Steel | ||
| MV400S-V | 4 In Stock | Quote Required | $79.50/each | Colorflow | In-line | In-line | Metering Valve | N/A | Manual | Fluorocarbon | 345 bar | 1/4 | 5 Gal/min | Steel | -26° °C | NPT | Hydraulic Valve Systems Division | +250 °C | Standard; 30° Taper | Oil | N/A | Manual | inline | 1/4 | NPT | Metering Valve | -15 | Standard; 30° Taper | N/A | 5 | Fluorocarbon | n/a | Steel | ||
| MV401S | Quote Required | $92.25/each | Colorflow | In-line | In-line | Metering Valve | N/A | Manual | Nitrile | 345 bar | 1/4 | 19 L/min | Steel | +121° °C | NPT | Hydraulic Valve Systems Division | -40 °C | Standard; 30° Taper | Oil | N/A | Manual | inline | 1/4 | NPT | Metering Valve | -40 | Standard; 30° Taper | N/A | 5 | Nitrile | n/a | Steel | |||
| MV420S | Quote Required | 41 In Stock | $120.00/each | Colorflow | In-line | In-line | Metering Valve | N/A | Manual | Nitrile | 345 bar | 4 | 11 L/min | Steel | +121° °C | SAE | Hydraulic Valve Systems Division | +250 °F | Standard; 30° Taper | Oil | N/A | Manual | inline | 4 | SAE | Metering Valve | -40 | Standard; 30° Taper | N/A | 3 | Nitrile | n/a | Steel | ||
| MV420S2 | Quote Required | $182.25/each | Colorflow | In-line | In-line | Metering Valve | N/A | Manual | Nitrile | 345 bar | 4 | 11 L/min | Steel | +121° °C | SAE | Hydraulic Valve Systems Division | -40 °C | Fine | Oil | N/A | Manual | inline | 4 | SAE | Metering Valve | -40 | Fine | N/A | 1.8 | Nitrile | n/a | Steel | |||
| MV460S | Quote Required | $100.50/each | Colorflow | In-line | In-line | Metering Valve | N/A | Manual | Nitrile | 5000 psi | 1/4 | 19 L/min | Steel | -40° °F | NPT | Hydraulic Valve Systems Division | -40 °C | Standard; 30° Taper | Oil | N/A | Manual | Right Angle | 1/4 | NPT | Metering Valve | -40 | Standard; 30° Taper | N/A | 5 | Nitrile | n/a | Steel | |||
| MV460S2 | Quote Required | $148.50/each | Colorflow | In-line | In-line | Metering Valve | N/A | Manual | Nitrile | 5000 psi | 1/4 | 19 L/min | Steel | -40° °F | NPT | Hydraulic Valve Systems Division | -40 °C | Fine | Oil | N/A | Manual | Right Angle | 1/4 | NPT | Metering Valve | -40 | Fine | N/A | 2.8 | Nitrile | n/a | Steel | |||
| MV461S | Quote Required | 5 In Stock | $115.50/each | Colorflow | In-line | In-line | Metering Valve | N/A | Manual | Nitrile | 413 bar | 1/4 | 5 Gal/min | Steel | -40° °F | NPT | Hydraulic Valve Systems Division | -40 °C | Standard; 30° Taper | Oil | N/A | Manual | Right Angle | 1/4 | NPT | Metering Valve | -40 | Standard; 30° Taper | N/A | 5 | Nitrile | n/a | Steel | ||
| MV600B | Quote Required | TBD | Colorflow | In-line | In-line | Metering Valve | N/A | Manual | Nitrile | 2000 | 3/8 | 30 | Steel | -40° | NPT | Hydraulic Valve Systems Division | +250 | Standard; 30° Taper | Air, Oil | N/A | Manual | inline | 3/8 | NPT | Metering Valve | -40 | Standard; 30° Taper | N/A | 8 | Nitrile | n/a | BRASS | |||
| MV600S | 1 Limited Stock | 159 In Stock | $94.50/each | Colorflow | In-line | In-line | Metering Valve | N/A | Manual | Nitrile | 345 bar | 3/8 | 8 Gal/min | Steel | +121° °C | NPT | Hydraulic Valve Systems Division | -40 °C | Standard; 30° Taper | Oil | N/A | Manual | inline | 3/8 | NPT | Metering Valve | -40 | Standard; 30° Taper | N/A | 8 | Nitrile | n/a | Steel |
