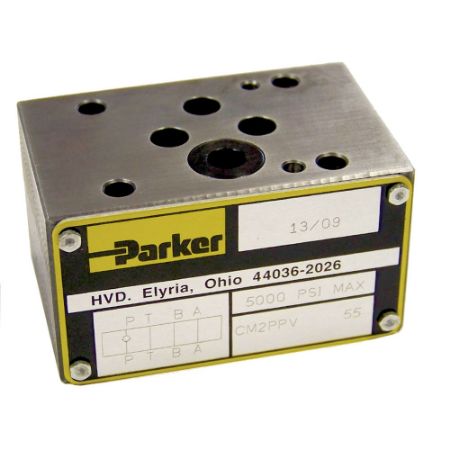

CHECK SANDWICH VALVE - CM SERIES
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s CM series check valves provide an integral, full flow check valve in the pressure 'P' port, 'A' port, 'B' port, or the tank 'T' port of the directional valve. Reverse flow is blocked. The CM2 and CM3 sizes offer a combination P&T check version.
Markets
• Factory Automation
• Lumber & Wood
• Machine Tools
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Molding
• Packaging Machinery
• Plastic Processing
• Primary Metal Refining Process
• Rubber & Tire Processing
• Vehicle Assembly Facilities
Features/Benefits
• Valve bodies are manufactured from steel which provides extra strength and durability for longer life
• Internal hardened steel components also provide longer life
• Positive shut-off is provided by a fully guided poppet and allows full flow in the unchecked position
• Parker CM sandwich style check valves can be used either on the 'P', 'A', 'B', 'T' ports, or combinations
• Large internal flow paths allow high flow at low pressure drop
Applications
• Suitable for general hydraulic applications
Read More...Markets
• Factory Automation
• Lumber & Wood
• Machine Tools
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Molding
• Packaging Machinery
• Plastic Processing
• Primary Metal Refining Process
• Rubber & Tire Processing
• Vehicle Assembly Facilities
Features/Benefits
• Valve bodies are manufactured from steel which provides extra strength and durability for longer life
• Internal hardened steel components also provide longer life
• Positive shut-off is provided by a fully guided poppet and allows full flow in the unchecked position
• Parker CM sandwich style check valves can be used either on the 'P', 'A', 'B', 'T' ports, or combinations
• Large internal flow paths allow high flow at low pressure drop
Applications
• Suitable for general hydraulic applications
| Action | Part No. | Availability | Partner Available | Price | UOM | Mounting Type | Size | Port Connection | Maximum Operating Temperature | Weight | Actuation Type | Maximum Operating Pressure | Maximum Flow Rate | Product Style | Cracking Pressure | Minimum Operating Temperature | Seal Material | Body Material | Division | Media | Maximum Flow Rate | Mounting Type | Size | Maximum Operating Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CM2BBV | Quote Required | $264.00/each | EA | Subplate | NFPA D03 | B Port Check | +140 | 1.7 | Hydraulic Pressure | 5000 | 20 | Sandwich Check Valve | 5 | -4 | Fluorocarbon | Steel | Hydraulic Valve Systems Division | Oil | 20 GPM | Subplate | NFPA D03; CETOP 3; NG6 | 5000 PSI | ||
| CM2DDFN | Quote Required | $306.00/each | EA | Subplate | NFPA D03 | A and B Port Inverted | +140 | 1.7 | Hydraulic Pressure | 5000 | 20 | Sandwich Check Valve | 5 | -4 | Nitrile | Steel | Hydraulic Valve Systems Division | Oil | 20 GPM | Subplate | NFPA D03; CETOP 3; NG6 | 5000 PSI | ||
| CM2DDN | Quote Required | 4 In Stock | $299.25/each | EA | Subplate | NFPA D03 | A and B Port Checks | +140 | 1.7 | Hydraulic Pressure | 5000 | 20 | Sandwich Check Valve | 5 | -4 | Nitrile | Steel | Hydraulic Valve Systems Division | Oil | 20 GPM | Subplate | NFPA D03; CETOP 3; NG6 | 5000 PSI | |
| CM2PPN | Quote Required | 12 In Stock | $264.00/each | EA | Subplate | NFPA D03 | P Port Checks | +140 | 1.7 | Hydraulic Pressure | 5000 | 20 | Sandwich Check Valve | 5 | -4 | Nitrile | Steel | Hydraulic Valve Systems Division | Oil | 20 GPM | Subplate | NFPA D03; CETOP 3; NG6 | 5000 PSI | |
| CM2PPV | Quote Required | 11 In Stock | $264.00/each | EA | Subplate | NFPA D03 | P Port Checks | +140 | 1.7 | Hydraulic Pressure | 5000 | 20 | Sandwich Check Valve | 5 | -4 | Fluorocarbon | Steel | Hydraulic Valve Systems Division | Oil | 20 GPM | Subplate | NFPA D03; CETOP 3; NG6 | 5000 PSI | |
| CM2TTN | Quote Required | 4 In Stock | $264.00/each | EA | Subplate | NFPA D03 | T Port Checks | +140 | 1.7 | Hydraulic Pressure | 5000 | 20 | Sandwich Check Valve | 5 | -4 | Nitrile | Steel | Hydraulic Valve Systems Division | Oil | 20 GPM | Subplate | NFPA D03; CETOP 3; NG6 | 5000 PSI | |
| CM2TTV | Quote Required | $264.00/each | EA | Subplate | NFPA D03 | T Port Checks | +140 | 1.7 | Hydraulic Pressure | 5000 | 20 | Sandwich Check Valve | 5 | -4 | Fluorocarbon | Steel | Hydraulic Valve Systems Division | Oil | 20 GPM | Subplate | NFPA D03; CETOP 3; NG6 | 5000 PSI | ||
| CM3BBN | Quote Required | $507.00/each | EA | Subplate | NFPA D05 | B Port Check | +140 | 3.9 | Hydraulic Pressure | 5000 | 30 | Sandwich Check Valve | 5 | -4 | Nitrile | Steel | Hydraulic Valve Systems Division | Oil | 30 GPM | Subplate | NFPA D05; CETOP 5; NG10 | 5000 PSI | ||
| CM3DDN | Quote Required | $461.25/each | EA | Subplate | NFPA D05 | A and B Port Checks | +140 | 3.9 | Hydraulic Pressure | 5000 | 30 | Sandwich Check Valve | 5 | -4 | Nitrile | Steel | Hydraulic Valve Systems Division | Oil | 30 GPM | Subplate | NFPA D05; CETOP 5; NG10 | 5000 PSI | ||
| CM3PPN | Quote Required | 3 In Stock | $426.75/each | EA | Subplate | NFPA D05 | P Port Checks | +140 | 3.9 | Hydraulic Pressure | 5000 | 30 | Sandwich Check Valve | 5 | -4 | Nitrile | Steel | Hydraulic Valve Systems Division | Oil | 30 GPM | Subplate | NFPA D05; CETOP 5; NG10 | 5000 PSI | |
| CM3PPV | Quote Required | $468.75/each | EA | Subplate | NFPA D05 | P Port Checks | +140 | 3.9 | Hydraulic Pressure | 5000 | 30 | Sandwich Check Valve | 5 | -4 | Fluorocarbon | Steel | Hydraulic Valve Systems Division | Oil | 30 GPM | Subplate | NFPA D05; CETOP 5; NG10 | 5000 PSI | ||
| CM3PTN | Quote Required | $426.75/each | EA | Subplate | NFPA D05 | P and T Port Checks | +140 | 3.9 | Hydraulic Pressure | 5000 | 30 | Sandwich Check Valve | 5 | -4 | Nitrile | Steel | Hydraulic Valve Systems Division | Oil | 30 GPM | Subplate | NFPA D05; CETOP 5; NG10 | 5000 PSI |
