Chart 8 Solenoid Coils

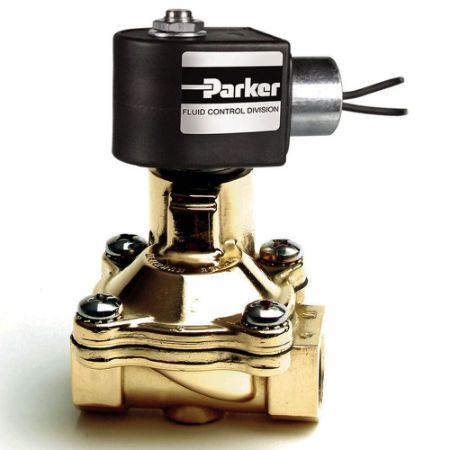

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Coils are electrical devices that produce magnetic flux when electrical power is applied to the windings. Surrounding the coil is the metal solenoid enclosure and frame. Together with the plunger and stop, it forms the magnetic circuit that operates the valve. Without the enclosure, the magnetic circuit is not complete. Without a complete magnetic circuit, the magnetic field is reduced and valve performance suffers. Depending on the coil voltage and power rating, the pressure rating of the valve can vary. Solenoid enclosures come in a variety of constructions offering varying levels of protection against the elements and other forces. NEMA identifies the different enclosures as “Types” and NEC sets standards for their safety and performance.
Read More...| Action | Part No. | Availability | Partner Available | Price | Power Consumption | Specifications Met | Ingress Protection Rating | Insulation Class | Division | Coil Type | Compatible Valve | Input Voltage | Insulation Class | Coil Type | Input Voltage | Compatible Valve | Power Consumption | Specifications Met | Ingress Protection Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C322C1 | 10 In Stock | Quote Required | $96.56/each | 22 W | CURus Recognized Component | NEMA 4 | H (180°C) | Fluid Control Division | 1/2" NPT Conduit w/ 18" Leads | For Chart 8 Compatible Pressure Vessels | 12 VDC | Class H | 1/2" NPT Conduit w/ 18" Leads | 120 | For Chart 8 Compatible Pressure Vessels | 22 | cULus Listed Solenoid for Hazardous Locations; CE - Low Voltage, EMC | cULus - Class 1, Div. 1, Group A,B,C,D Class 2, Div. 1, Group E - T3A | |
| C322C2 | 5 In Stock | Quote Required | $96.55/each | 22 W | CE - Low Voltage, EMC | NEMA 4X | H (180°C) | Fluid Control Division | 1/2" NPT Conduit w/ 18" Leads | For Chart 8 Compatible Pressure Vessels | 24 VDC | Class H | DIN 43650A / ISO 4400 | 240/60, 220/50 | For Chart 8 Compatible Pressure Vessels | 22 | cURus Recognized Component; CE - Low Voltage, EMC | NEMA 4,4X | |
| C322P3 | Quote Required | $96.45/each | 22 W | CE - Low Voltage, EMC | NEMA 4X | H (180°C) | Fluid Control Division | 1/2" NPT Conduit w/ 18" Leads | For Chart 8 Compatible Pressure Vessels | 120/60 VAC | Class H | 1/2" NPT Conduit w/ 18" Leads | 120/60, 110/50 | For Chart 8 Compatible Pressure Vessels | 22 | cURus Recognized Component; CE - Low Voltage, EMC | NEMA 4,4X | ||
| D300C2 | 15 In Stock | 9 In Stock | $80.27/each | 22 W | CURus Recognized Component | NEMA 4 | H (180°C) | Fluid Control Division | DIN 43650A / ISO 4400 | For Chart 8 Compatible Pressure Vessels | 24 VDC | Class H | 1/2" NPT Conduit w/ 18" Leads | 24/60 | For Chart 8 Compatible Pressure Vessels | 22 | cULus Listed Solenoid for Hazardous Locations; CE - Low Voltage, EMC | cULus - Class 1, Div. 1, Group A,B,C,D Class 2, Div. 1, Group E - T3A | |
| H322C1 | Quote Required | $165.05/each | 22 W | cULus Listed Solenoid for Hazardous Locations; CE - Low Voltage, EMC | cULus - Class 1, Div. 1, Group A,B,C,D Class 2, Div. 1, Group E - T3A | Class H | Fluid Control Division | 1/2" NPT Conduit w/ 18" Leads | For Chart 8 Compatible Pressure Vessels | 12.0 VDC | Class H | 1/2" NPT Conduit w/ 18" Leads | 240/60, 220/50 | For Chart 8 Compatible Pressure Vessels | 22 | cULus Listed Solenoid for Hazardous Locations; CE - Low Voltage, EMC | cULus - Class 1, Div. 1, Group A,B,C,D Class 2, Div. 1, Group E - T3A | ||
| H322C2 | 23 In Stock | Quote Required | $165.08/each | 22 W | cULus Listed Solenoid for Hazardous Locations; CE - Low Voltage, EMC | cULus - Class 1, Div. 1, Group A,B,C,D Class 2, Div. 1, Group E - T3A | Class H | Fluid Control Division | 1/2" NPT Conduit w/ 18" Leads | For Chart 8 Compatible Pressure Vessels | 24.0 VDC | Class H | 1/2" NPT Conduit w/ 18" Leads | 120/60 | For Chart 8 Compatible Pressure Vessels | 22 | cULus Listed Solenoid for Hazardous Locations; CE - Low Voltage, EMC | cULus - Class 1, Div. 1, Group A,B,C,D Class 2, Div. 1, Group E - T3A | |
| H322P3 | Quote Required | $164.93/each | 22 W | cULus Listed Solenoid for Hazardous Locations; CE - Low Voltage, EMC | cULus - Class 1, Div. 1, Group A,B,C,D Class 2, Div. 1, Group E - T3A | Class H | Fluid Control Division | 1/2" NPT Conduit w/ 18" Leads | For Chart 8 Compatible Pressure Vessels | 120/60, 110/50 | Class H | DIN 43650A / ISO 4400 | 12.0 | For Chart 8 Compatible Pressure Vessels | 22 | cURus Recognized Component; CE - Low Voltage, EMC | NEMA 4,4X |
