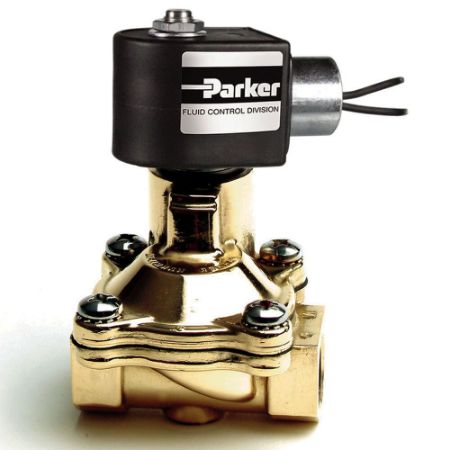

Chart 7 Solenoid Coils
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Coils are electrical devices that produce magnetic flux when electrical power is applied to the windings. Surrounding the coil is the metal solenoid enclosure and frame. Together with the plunger and stop, it forms the magnetic circuit that operates the valve. Without the enclosure, the magnetic circuit is not complete. Without a complete magnetic circuit, the magnetic field is reduced and valve performance suffers. Depending on the coil voltage and power rating, the pressure rating of the valve can vary. Solenoid enclosures come in a variety of constructions offering varying levels of protection against the elements and other forces. NEMA identifies the different enclosures as “Types” and NEC sets standards for their safety and performance.
Read More...| Action | Part No. | Availability | Partner Available | Price | UOM | Division | Input Voltage | Insulation Class | Specifications Met | Ingress Protection Rating | Compatible Valve | Coil Type | Power Consumption |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C111B2 | Quote Required | 10 In Stock | $51.77/each | EA | Fluid Control Division | 24/60 | Class F | cURus Recognized Component; CE - Low Voltage, EMC | NEMA 4,4X | For Chart 7 Compatible Pressure Vessels | 1/2" NPT Conduit w/ 18" Leads | 10.0 | |
| C111C6 | 4 In Stock | Quote Required | $89.82/each | EA | Fluid Control Division | 120 | Class F | cURus Recognized Component; CE - Low Voltage, EMC | NEMA 4,4X | For Chart 7 Compatible Pressure Vessels | 1/2" NPT Conduit w/ 18" Leads | 10.0 | |
| C111C8 | Quote Required | $166.09/each | EA | Fluid Control Division | 240 | Class F | CE - Low Voltage, EMC | NEMA 4,4X | For Chart 7 Compatible Pressure Vessels | 1/2" NPT Conduit w/ 18" Leads | 12 | ||
| C111Q3 | Quote Required | 12 In Stock | $51.79/each | EA | Fluid Control Division | 240/60, 220/50 | Class F | cURus Recognized Component; CE - Low Voltage, EMC | NEMA 4,4X | For Chart 7 Compatible Pressure Vessels | 1/2" NPT Conduit w/ 18" Leads | 10.0 | |
| C111Q8 | Quote Required | $59.59/each | EA | Fluid Control Division | 480/60, 440/50 | Class F | cURus Recognized Component; CE - Low Voltage, EMC | NEMA 4,4X | For Chart 7 Compatible Pressure Vessels | 1/2" NPT Conduit w/ 18" Leads | 10.0 | ||
| C148C2 | Quote Required | $84.24/each | EA | Fluid Control Division | 24.0 | Class F | cURus Recognized Component; CE - Low Voltage, EMC | NEMA 4,4X | For Chart 7 Compatible Pressure Vessels | 1/2" NPT Conduit w/ 48" Leads | 10.0 | ||
| C1GLP3 | Quote Required | $64.45/each | EA | Fluid Control Division | 120/60, 110/50 | Class F | cURus Recognized Component; CE - Low Voltage, EMC | NEMA 4,4X | For Chart 7 Compatible Pressure Vessels | 1/2" NPT Conduit w/ 18" Leads (Incl. Ground Lead) | 10.0 | ||
| C2222K | Quote Required | TBD | EA | Fluid Control Division | 208/60 | Class H | cURus Recognized Component; CE - Low Voltage, EMC | NEMA 4,4X | For Chart 7 Compatible Pressure Vessels | 1/2" NPT Conduit w/ 18" Leads | 10.0 | ||
| C222C1 | Quote Required | 1 Limited Stock | $82.74/each | EA | Fluid Control Division | 12.0 | Class H | cURus Recognized Component; CE - Low Voltage, EMC | NEMA 4,4X | For Chart 7 Compatible Pressure Vessels | 1/2" NPT Conduit w/ 18" Leads | 10.0 | |
| C222C2 | Quote Required | 313 In Stock | $82.74/each | EA | Fluid Control Division | 24.0 | Class H | cURus Recognized Component; CE - Low Voltage, EMC | NEMA 4,4X | For Chart 7 Compatible Pressure Vessels | 1/2" NPT Conduit w/ 18" Leads | 10.0 | |
| C222C6 | Quote Required | $120.81/each | EA | Fluid Control Division | 120 | Class H | cURus Recognized Component; CE - Low Voltage, EMC | NEMA 4,4X | For Chart 7 Compatible Pressure Vessels | 1/2" NPT Conduit w/ 18" Leads | 10.0 | ||
| C222P3 | 14 In Stock | 1 Limited Stock | $82.73/each | EA | Fluid Control Division | 120/60, 110/50 | Class H | cURus Recognized Component; CE - Low Voltage, EMC | NEMA 4,4X | For Chart 7 Compatible Pressure Vessels | 1/2" NPT Conduit w/ 18" Leads | 10.0 | |
| D100B2 | Quote Required | 55 In Stock | $41.92/each | EA | Fluid Control Division | 24/60 | Class F | cURus Recognized Component; CE - Low Voltage, EMC | NEMA 4,4X | For Chart 7 Compatible Pressure Vessels | DIN 43650A / ISO 4400 | 10.0 | |
| D100C1 | Quote Required | 13 In Stock | $41.93/each | EA | Fluid Control Division | 12.0 | Class F | cURus Recognized Component; CE - Low Voltage, EMC | NEMA 4,4X | For Chart 7 Compatible Pressure Vessels | DIN 43650A / ISO 4400 | 10.0 | |
| D100Q3 | Quote Required | 3 In Stock | $44.30/each | EA | Fluid Control Division | 240/60, 220/50 | Class F | cURus Recognized Component; CE - Low Voltage, EMC | NEMA 4,4X | For Chart 7 Compatible Pressure Vessels | DIN 43650A / ISO 4400 | 10.0 | |
| D200C1 | Quote Required | 20 In Stock | $63.30/each | EA | Fluid Control Division | 12.0 | Class H | cURus Recognized Component; CE - Low Voltage, EMC | NEMA 4,4X | For Chart 7 Compatible Pressure Vessels | DIN 43650A / ISO 4400 | 10.0 | |
| D200C2 | Quote Required | 12 In Stock | $66.47/each | EA | Fluid Control Division | 24.0 | Class H | cURus Recognized Component; CE - Low Voltage, EMC | NEMA 4,4X | For Chart 7 Compatible Pressure Vessels | DIN 43650A / ISO 4400 | 10.0 | |
| D200P3 | Quote Required | $67.22/each | EA | Fluid Control Division | 120/60, 110/50 | Class H | cURus Recognized Component; CE - Low Voltage, EMC | NEMA 4,4X | For Chart 7 Compatible Pressure Vessels | DIN 43650A / ISO 4400 | 10.0 | ||
| H111B6 | Quote Required | $133.23/each | EA | Fluid Control Division | 120/60 | Class F | cULus Listed Solenoid for Hazardous Locations; CE - Low Voltage, EMC | cULus - Class 1, Div. 1, Group A,B,C,D Class 2, Div. 1, Group E - T3A | For Chart 7 Compatible Pressure Vessels | 1/2" NPT Conduit w/ 18" Leads | 10.0 | ||
| H2223N | Quote Required | $293.67/each | EA | Fluid Control Division | 125 | Class H | cULus Listed Solenoid for Hazardous Locations; CE - Low Voltage, EMC | cULus - Class 1, Div. 1, Group A,B,C,D Class 2, Div. 1, Group E - T3A | For Chart 7 Compatible Pressure Vessels | 1/2" NPT Conduit w/ 18" Leads | 11 |
