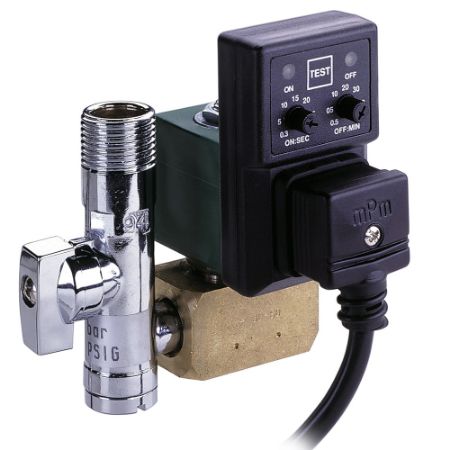

CDV Series Time Controlled Condensate Drains (up to 50 bar g)
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
The Parker CDV range of time controlled drains are designed to remove condensate from compressed air systems. They operate by using a combination of a solenoid valve with an electronic timer.
The units are compact and can be installed on most compressed air system components like compressors, aftercoolers, dryers, filters and pressure vessels, regardless of their size or capacity. The drains are ready to use after installation and adjustment to the interval of discharge times.
Features
• Pressure ratings of 16 or 50 barg available
• Volume flow of up to 9000 m³/h (88 cfm)
• Power supplies: 230 VAC, 115 VAC or 24VDC
Benefits
• Automatic and reliable consistent operation
• Compact and space saving
• Easy to install and operate
• Maintenance free
Please note: condensate volumes depend on the point of installation, whether it be on a compressor, refrigeration dryer or filter etc.
For more information or a detailed discussion about your specific requirements please contact Parker or an authorised Parker distributor
Read More...The units are compact and can be installed on most compressed air system components like compressors, aftercoolers, dryers, filters and pressure vessels, regardless of their size or capacity. The drains are ready to use after installation and adjustment to the interval of discharge times.
Features
• Pressure ratings of 16 or 50 barg available
• Volume flow of up to 9000 m³/h (88 cfm)
• Power supplies: 230 VAC, 115 VAC or 24VDC
Benefits
• Automatic and reliable consistent operation
• Compact and space saving
• Easy to install and operate
• Maintenance free
Please note: condensate volumes depend on the point of installation, whether it be on a compressor, refrigeration dryer or filter etc.
For more information or a detailed discussion about your specific requirements please contact Parker or an authorised Parker distributor
| Action | Part No. | Availability | Partner Available | Price | UOM | Brand | Technology | Division | Division | Ingress Protection Rating | Connection Type | Operating Temperature | Height | Application | Weight | Product Type | Depth | Width | Industry | Product Style | Product Series | Outlet Port Size | Materials of Construction | Flow Rate | Operating Pressure | Electrical Requirements | Maximum Operating Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CDV120115 | Quote Required | $442.72/each | EA | Parker | Filtration | Gas Separation and Filtration Division EMEA | Gas Separation and Filtration Division EMEA | IP65 | BSPP | 2 to 50 °C | 3.5 inch | Compressed Air Applications | 1.5 lb | Condensate Drain | 110.0 mm | 90.0 mm | Industrial Manufacturing Equipment<br/>Food & Beverage<br/>Automotive<br/>Electronics<br/>Pharmaceuticals | Electronic Timed Drain | CDV | 3/8 inch | Plastic/brass | 9000 m³/h (88 cfm) | Maximum: 16 barg (232 psig) | 115/1/50-60 Hz | 16 barg |
