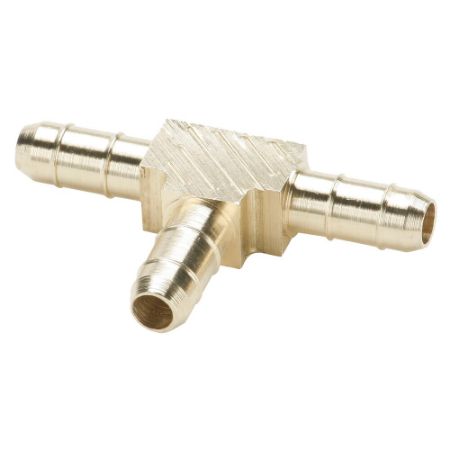

Brass Pneumatic Hose Barbs for Tubing, Dubl-Barb
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's economical, one piece, Dubl-Barb® fittings are designed for quick assembly with polyethylene tubing without the use of a clamp. Because of the many available variations in qualities of polyethylene tubing, Dubl-Barb® fittings are recommended for use with Parker Parflex® polyethylene tubing (or an equal grade). Parker Parflex® tubing is highly resistant to environmental stress cracking which is necessary for long life when coupled with Dubl-Barb fittings. Assembly is simple, just cut tube squarely and push tube over the two barbs.
Use with Parker Parflex Division polyethylene tubing.
Markets:
• Pneumatic
• Environmental control
Features/Benefits
• All brass construction
• One piece
• Compact
• Excellent vibration resistance
• No clamp required
Applications:
• Climate control circuits
• Pneumatic systems
• Humidifiers
• Filters
• Test apparatus
Custom configurations and sizes are available upon request. Contact us for additional information.
| Action | Part No. | Availability | Partner Available | Price | UOM | Division | Maximum Operating Pressure | Minimum Operating Temperature | Dimensional Weight | Tube Material | Maximum Operating Temperature | Body Material | Connection 3 Style | Connection 3 Thread Size (inch) | Connection 2 Style | Shape | Connection 2 Thread Size (inch) | Connection 2 Tube O.D. (inch) | Connection 1 Style | Connection 1 Tube O.D. (inch) | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20-4 | 3 In Stock | 69 In Stock | $2.08/each | EA | Fluid System Connectors Division | 10 bar | -65 °F | 0.05518884892086331 lb | Polyethylene | 90 °F | Brass | na | na | na | Plug | na | na | Barb | 1/4 | Tube | |
| 20-6 | 7 In Stock | 184 In Stock | $3.65/each | EA | Fluid System Connectors Division | 10 bar | -53 °C | 0.05518884892086331 lb | Polyethylene | 90 °F | Brass | na | na | na | Plug | na | na | Barb | 3/8 | Tube | |
| 20-8 | 29 In Stock | 84 In Stock | $5.59/each | EA | Fluid System Connectors Division | 10 bar | -65 °F | 0.05518884892086331 lb | Polyethylene | 90 °F | Brass | na | na | na | Plug | na | na | Barb | 1/2 | Tube | |
| 22-4 | 9 In Stock | 1170 In Stock | $2.35/each | EA | Fluid System Connectors Division | 10 bar | -65 °F | 0.054433633093525176 lb | Polyethylene | 32 °C | Brass | na | na | Barb | Union | na | 1/4 | Barb | 1/4 | Tube to Tube | |
| 224-4 | 24 In Stock | 3796 In Stock | $5.69/each | EA | Fluid System Connectors Division | 150 psi | -65 °F | 0.028406025179856114 lb | Polyethylene | 90 °F | Brass | na | na | Barb | Tee | na | 1/4 | Barb | 1/4 | Tube to Tube | |
| 22-4-5/32 | 7 In Stock | 366 In Stock | $4.62/each | EA | Fluid System Connectors Division | 150 psi | -53 °C | 0.0683453237410072 lb | Polyethylene | 90 °F | Brass | na | na | Barb | Union | na | 5/32 | Barb | 1/4 | Tube to Tube | |
| 224-5/32 | 19 In Stock | 130 In Stock | $8.46/each | EA | Fluid System Connectors Division | 10 bar | -53 °C | 0.027594424460431654 lb | Polyethylene | 32 °C | Brass | na | na | Barb | Tee | na | 5/32 | Barb | 5/32 | Tube to Tube | |
| 22-4-6 | 13 In Stock | 298 In Stock | $3.85/each | EA | Fluid System Connectors Division | 150 psi | -53 °C | 0.05681205035971223 lb | Polyethylene | 90 °F | Brass | na | na | Barb | Union | na | 3/8 | Barb | 1/4 | Tube to Tube | |
| 224-6 | 92 In Stock | 2309 In Stock | $6.40/each | EA | Fluid System Connectors Division | 150 | -65 | 0.028406025179856114 | Polyethylene | 90 | Brass | na | na | Barb | Tee | na | 3/8 | Barb | 3/8 | Tube to Tube | |
| 224-6-6-4 | 2 Limited Stock | 314 In Stock | $6.02/each | EA | Fluid System Connectors Division | 10 bar | -65 °F | 0.028705035971223022 lb | Polyethylene | 90 °F | Brass | na | na | Barb | Tee | na | 1/4 | Barb | 3/8 | Tube to Tube | |
| 22-4-8 | 25 In Stock | 97 In Stock | $6.72/each | EA | Fluid System Connectors Division | 150 psi | -65 °F | 0.11037769784172662 lb | Polyethylene | 90 °F | Brass | na | na | Barb | Union | na | 1/2 | Barb | 1/4 | Tube to Tube | |
| 224-8 | Quote Required | 83 In Stock | $10.53/each | EA | Fluid System Connectors Division | 150 psi | -65 °F | 0.05681205035971223 lb | Polyethylene | 90 °F | Brass | na | na | Barb | Tee | na | 1/2 | Barb | 1/2 | Tube to Tube | |
| 224-8-8-4 | 5 In Stock | 50 In Stock | $12.08/each | EA | Fluid System Connectors Division | 150 psi | -53 °C | 0.054433633093525176 lb | Polyethylene | 90 °F | Brass | na | na | Barb | Tee | na | 1/4 | Barb | 1/2 | Tube to Tube | |
| 22-5/32 | 21 In Stock | 130 In Stock | $3.21/each | EA | Fluid System Connectors Division | 150 psi | -53 °C | 0.05518884892086331 lb | Polyethylene | 90 °F | Brass | na | na | Barb | Union | na | 5/32 | Barb | 5/32 | Tube to Tube | |
| 225-4-4 | 46 In Stock | 3191 In Stock | $4.46/each | EA | Fluid System Connectors Division | 10 bar | -53 °C | 0.027594424460431654 lb | Polyethylene | 90 °F | Brass | na | na | Barb | 90° Elbow | na | 1/4 | Barb | 1/4 | Tube to Tube | |
| 225-6-6 | 3 In Stock | 547 In Stock | $7.76/each | EA | Fluid System Connectors Division | 10 bar | -65 °F | 0.027338129496402876 lb | Polyethylene | 32 °C | Brass | na | na | Barb | 90° Elbow | na | 3/8 | Barb | 3/8 | Tube to Tube | |
| 225-8-8 | 28 In Stock | 49 In Stock | $11.65/each | EA | Fluid System Connectors Division | 150 psi | -65 °F | Polyethylene | 32 °C | Brass | na | na | Barb | 90° Elbow | na | 1/2 | Barb | 1/2 | Tube to Tube | ||
| 22-6 | 32 In Stock | 331 In Stock | $3.52/each | EA | Fluid System Connectors Division | 10 bar | -65 °F | 0.06766187050359712 lb | Polyethylene | 90 °F | Brass | na | na | Barb | Union | na | 3/8 | Barb | 3/8 | Tube to Tube | |
| 22-6-8 | 4 In Stock | 1688 In Stock | $5.38/each | EA | Fluid System Connectors Division | 10 bar | -65 °F | 0.11618705035971222 lb | Polyethylene | 90 °F | Brass | na | na | Barb | Union | na | 1/2 | Barb | 3/8 | Tube to Tube | |
| 22-8 | Quote Required | 85 In Stock | $5.68/each | EA | Fluid System Connectors Division | 10 bar | -53 °C | 0.10886726618705035 lb | Polyethylene | 90 °F | Brass | na | na | Barb | Union | na | 1/2 | Barb | 1/2 | Tube to Tube |
