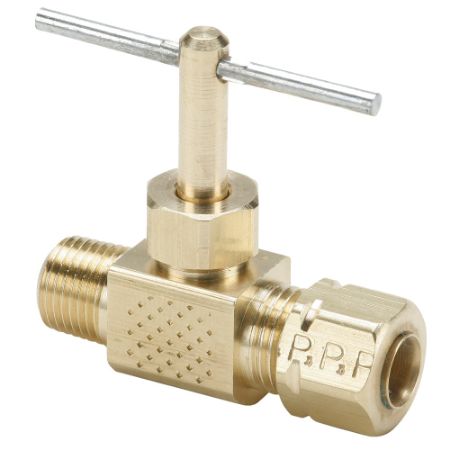

Brass Needle Valve, Low Pressure - NV Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Needle valves create a means of controlling the flow of liquids or gases through the valve mechanism. It is possible to easily adjust the flow rate to any specific amount desired, making the needle valve useful in a number of applications. Parker's all brass needle valves have metal-to-metal seats with fine thread screwdown making them ideal for situations in which the desired flow must be maintained with little to no variance. By controlling the needle valve rate, stress on the delivery system is kept to a minimum. The specialty formulated low temperature seal in the Parker needle valve remains elastic to temperatures as low as -40°F.
Parker's needle valves should always be installed with the pressure against the seat.
Markets
• Industrial
• Pneumatic
• MRO
• Packaging
• Water
Features/Benefits:
• Accurate flow control
• Corrosion resistance
• Forged brass for improved long-term mechanical strength
• Metal-to-metal seal for positive sealing
• Low temperature seal for improved performance
Applications:
• Pneumatic control lines
• Water circuits
• Machine tools
• Textile
Custom configurations and sizes are available upon request. Contact us for additional information.
| Action | Part No. | Availability | Partner Available | Price | UOM | Dimensional Weight | Division | Body Material | Shape | Connection 2 Tube O.D. (inch) | Connection 1 Style | Connection 1 Tube O.D. (inch) | Connection 2 Thread Size (inch) | Style | Connection 1 Thread Size (inch) | Connection 2 Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NV101F-4-2 | Quote Required | 212 In Stock | $14.06/each | EA | 0.27594424460431655 lb | Fluid System Connectors Division | Brass | 90? Elbow | na | 45 Flare | 1/4 | 1/8 | Flare to Pipe | na | Male Pipe | |
| NV101F-6-4 | 3 In Stock | 4 In Stock | $26.08/each | EA | 0.27594424460431655 lb | Fluid System Connectors Division | Brass | 90? Elbow | na | 45 Flare | 3/8 | 1/4 | Flare to Pipe | na | Male Pipe | |
| NV102F-4 | Quote Required | 15 In Stock | $20.64/each | EA | 0.27594424460431655 lb | Fluid System Connectors Division | Brass | In Line | na | 45 Flare | 1/4 | 1/4 | Flare to Flare | na | 45 Flare | |
| NV103F-4-2 | Quote Required | 2 Limited Stock | $14.50/each | EA | Fluid System Connectors Division | Brass | In Line | na | 45 Flare | 1/4 | 1/8 | Flare to Pipe | na | Male Pipe | ||
| NV104C-4-2 | Quote Required | 11 In Stock | $14.46/each | EA | 0.27594424460431655 lb | Fluid System Connectors Division | Brass | 90? Elbow | na | Compression | 1/4 | 1/8 | Compression to Pipe | na | Male Pipe | |
| NV104C-4-4 | Quote Required | 32 In Stock | $36.68/each | EA | Fluid System Connectors Division | Brass | 90? Elbow | na | Compression | 1/4 | 1/4 | Compression to Pipe | na | Male Pipe | ||
| NV104C-5-2 | 2 Limited Stock | 14 In Stock | $30.43/each | EA | Fluid System Connectors Division | Brass | 90? Elbow | na | Compression | 5/16 | 1/8 | Compression to Pipe | na | Male Pipe | ||
| NV104C-6-4 | 1 Limited Stock | 33 In Stock | $35.27/each | EA | 0.27594424460431655 lb | Fluid System Connectors Division | Brass | 90? Elbow | na | Compression | 3/8 | 1/4 | Compression to Pipe | na | Male Pipe | |
| NV104CA-4-2 | Quote Required | 1 Limited Stock | $19.51/each | EA | Fluid System Connectors Division | Brass | 90? Elbow | na | Compress-Align | 1/4 | 1/8 | Compress-Align to Pipe | na | Male Pipe | ||
| NV105C-6 | 5 In Stock | 25 In Stock | $51.10/each | EA | 0.27594424460431655 lb | Fluid System Connectors Division | Brass | In Line | 3/8 | Compression | 3/8 | na | Compression to Compression | na | Compression | |
| NV105CA-4 | 156 In Stock | 13 In Stock | $27.15/each | EA | Fluid System Connectors Division | Brass | In Line | 1/4 | Compress-Align | 1/4 | na | Compress-Align to Compress-Align | na | Compress-Align | ||
| NV105CA-6 | 52 In Stock | Quote Required | $46.36/each | EA | Fluid System Connectors Division | Brass | In Line | 3/8 | Compress-Align | 3/8 | na | Compress-Align to Compress-Align | na | Compress-Align | ||
| NV106C-4-2 | 1 Limited Stock | 15 In Stock | $21.20/each | EA | Fluid System Connectors Division | Brass | In Line | na | Compression | 1/4 | 1/8 | Compression to Pipe | na | Male Pipe | ||
| NV106C-4-4 | Quote Required | 16 In Stock | $45.87/each | EA | Fluid System Connectors Division | Brass | In Line | na | Compression | 1/4 | 1/4 | Compression to Pipe | na | Male Pipe | ||
| NV106C-6-4 | 7 In Stock | Quote Required | $33.15/each | EA | 0.27594424460431655 lb | Fluid System Connectors Division | Brass | In Line | na | Compression | 3/8 | 1/4 | Compression to Pipe | na | Male Pipe | |
| NV106CA-4-4 | Quote Required | 19 In Stock | $39.39/each | EA | Fluid System Connectors Division | Brass | In Line | na | Compress-Align | 1/4 | 1/4 | Compress-Align to Pipe | na | Male Pipe | ||
| NV107P-2 | Quote Required | 227 In Stock | $20.47/each | EA | 0.27594424460431655 lb | Fluid System Connectors Division | Brass | In Line | na | Male Pipe | na | 1/8 | Male Pipe to Male Pipe | 1/8 | Male Pipe | |
| NV107P-4 | Quote Required | 48 In Stock | $33.94/each | EA | 0.27594424460431655 lb | Fluid System Connectors Division | Brass | In Line | na | Male Pipe | na | 1/4 | Male Pipe to Male Pipe | 1/4 | Male Pipe | |
| NV108P-2 | 5 In Stock | 50 In Stock | $16.35/each | EA | 0.27594424460431655 lb | Fluid System Connectors Division | Brass | In Line | na | Female Pipe | na | 1/8 | Female Pipe to Male Pipe | 1/8 | Male Pipe | |
| NV108P-4 | 8 In Stock | 63 In Stock | $25.79/each | EA | 0.27594424460431655 lb | Fluid System Connectors Division | Brass | In Line | na | Female Pipe | na | 1/4 | Female Pipe to Male Pipe | 1/4 | Male Pipe |
