BHA PulsePleat Filter Elements

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

NOTE: Need a custom filter, give us a call 800.821.2222

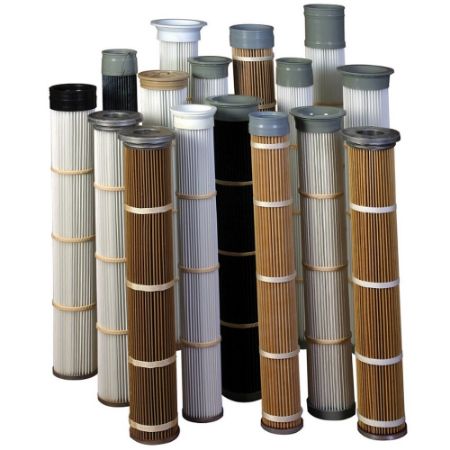

BHA® PulsePleat® filter elements, the original technology, provide superior quality and performance for upgrading and improving existing dust collection systems. The PulsePleat filter element is a one-piece, pleated product of spunbond polyester media that replaces filter bags and cages. This unique media is unlike traditional felt fabrics in that it has a tight pore structure, which resists surface penetration of particulate, and has rigid physical properties that allow it to hold a pleat without the need for supporting backing material. The media is pleated and molded into a filter element that can increase filtration surface area two to three times compared to conventional filter bags, dramatically increasing filtration efficiency while operating at significantly lower differential pressures.

Features/Benefits:

• 100 percent spunbond polyester media offers superior filtering efficiency

• Increases available filtration surface area up to three times versus a standard filter bag

• One-piece design eliminates filter bags and support cages

• Fits most standard tubesheet holes; resilient urethane top ensures a superior fit and tight seal

• Available in specialty finishes, including BHA® Preveil® ePTFE membrane

• Innovative and patented iPLAS® strapping system resists flex fatigue, minimizing premature failure of elements

• Pleat depth and spacing are customized for specific applications for improved dust cake release

• Promotes increased airflow for more throughput and production

• Extra filtration area reduces air-to-cloth ratio and operating differential pressure resulting in energy savings

• Generally requires no modifications to existing equipment

• Requires less compressed air for pulse cleaning, resulting in potential energy savings

• High filtration efficiency helps reduce emissions

• One-step installation/removal process helps reduce installation and maintenance costs

• Helps prevent abrasion problems, due to its shorter length, which keeps element out of inlet gas airflow

Applications:

• Baghouses

• Dust collection equipment
