Air Operated Directional Control Valve - D3A Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

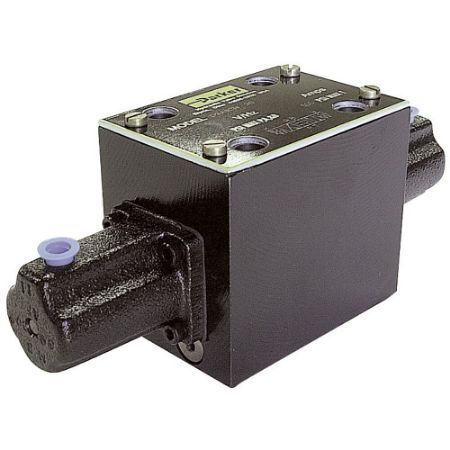

Parker’s D3A directional control valves are available in 2 or 3-position and conform to NFPA’s D05/CETOP 5 mounting patterns.

Markets:
• Entertainment Automation
• Factory Automation
• Lumber & Wood
• Machine Tools
• Marine
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Molding
• Oil & Gas
• Other Natural Resources
• Packaging Machinery
• Plastic Packaging
• Power Generation
• Primary Metal Refining/Process
• Printing and Marking Equipment
• Rubber & Tire Processing
• Vehicle Assembly Facilities

Features/Benefits:
• High flow, low pressure drop design applications
• Low pilot pressure required – 4.1 Bar (60 PSI) minimum

Applications:
• Suitable for general hydraulic applications

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	UOM	Seal Material	Maximum Operating Temperature	Maximum Operating Pressure	Division	Minimum Operating Temperature	Maximum Flow Rate	Actuation Type	Options	Size	Mounting Type	Body Material	Spool Code	Valve Type	Spool Position	Weight	Mounting Type	Maximum Operating Pressure	Size	Maximum Flow Rate
D3A1CN	Quote Required	Quote Required	$0.01	EA	Nitrile	140	5000	Hydraulic Valve Systems Division	-4	40	Hydraulic Pressure	n/a	NFPA D05	Subplate	Gray Iron	4-Way	Air Operated Directional Control Valve	Double Operator	9	Subplate	5000 PSI	NFPA D05, CETOP 5, NG 10	Up to 40 depending on spool
D3A1CN90	Quote Required	Quote Required	TBD		Nitrile	140	5000	Hydraulic Valve Systems Division	-4	40	Hydraulic Pressure	1/4 BSPP Pilot Port	NFPA D05	Subplate	Gray Iron	4-Way	Air Operated Directional Control Valve	Double Operator	9	Subplate	5000 PSI	NFPA D05, CETOP 5, NG 10	Up to 40 depending on spool
D3A1CV	Quote Required	Quote Required	TBD		Fluorocarbon	140	5000	Hydraulic Valve Systems Division	-4	40	Hydraulic Pressure	n/a	NFPA D05	Subplate	Gray Iron	4-Way	Air Operated Directional Control Valve	Double Operator	9	Subplate	5000 PSI	NFPA D05, CETOP 5, NG 10	Up to 40 depending on spool
D3A1CV90	Quote Required	Quote Required	TBD		Fluorocarbon	140	5000	Hydraulic Valve Systems Division	-4	40	Hydraulic Pressure	1/4 BSPP Pilot Port	NFPA D05	Subplate	Gray Iron	4-Way	Air Operated Directional Control Valve	Double Operator	9	Subplate	5000 PSI	NFPA D05, CETOP 5, NG 10	Up to 40 depending on spool
D3A1EN	Quote Required	Quote Required	TBD		Nitrile	140	5000	Hydraulic Valve Systems Division	-4	40	Hydraulic Pressure	n/a	NFPA D05	Subplate	Gray Iron	4-Way	Air Operated Directional Control Valve	2-Position	9	Subplate	5000 PSI	NFPA D05, CETOP 5, NG 10	Up to 40 depending on spool
D3A1EN90	Quote Required	Quote Required	TBD		Nitrile	140	5000	Hydraulic Valve Systems Division	-4	40	Hydraulic Pressure	1/4 BSPP Pilot Port	NFPA D05	Subplate	Gray Iron	4-Way	Air Operated Directional Control Valve	2-Position	9	Subplate	5000 PSI	NFPA D05, CETOP 5, NG 10	Up to 40 depending on spool
D3A1EV	Quote Required	Quote Required	TBD		Fluorocarbon	140	5000	Hydraulic Valve Systems Division	-4	40	Hydraulic Pressure	n/a	NFPA D05	Subplate	Gray Iron	4-Way	Air Operated Directional Control Valve	2-Position	9	Subplate	5000 PSI	NFPA D05, CETOP 5, NG 10	Up to 40 depending on spool
D3A1EV90	Quote Required	Quote Required	TBD		Fluorocarbon	140	5000	Hydraulic Valve Systems Division	-4	40	Hydraulic Pressure	1/4 BSPP Pilot Port	NFPA D05	Subplate	Gray Iron	4-Way	Air Operated Directional Control Valve	2-Position	9	Subplate	5000 PSI	NFPA D05, CETOP 5, NG 10	Up to 40 depending on spool
D3A1KN	Quote Required	Quote Required	TBD		Nitrile	140	5000	Hydraulic Valve Systems Division	-4	40	Hydraulic Pressure	n/a	NFPA D05	Subplate	Gray Iron	4-Way	Air Operated Directional Control Valve	2-Position	9	Subplate	5000 PSI	NFPA D05, CETOP 5, NG 10	Up to 40 depending on spool
D3A1KN90	Quote Required	Quote Required	TBD		Nitrile	140	5000	Hydraulic Valve Systems Division	-4	40	Hydraulic Pressure	1/4 BSPP Pilot Port	NFPA D05	Subplate	Gray Iron	4-Way	Air Operated Directional Control Valve	2-Position	9	Subplate	5000 PSI	NFPA D05, CETOP 5, NG 10	Up to 40 depending on spool
D3A1KV	Quote Required	Quote Required	TBD		Fluorocarbon	140	5000	Hydraulic Valve Systems Division	-4	40	Hydraulic Pressure	n/a	NFPA D05	Subplate	Gray Iron	4-Way	Air Operated Directional Control Valve	2-Position	9	Subplate	5000 PSI	NFPA D05, CETOP 5, NG 10	Up to 40 depending on spool
D3A1KV90	Quote Required	Quote Required	TBD		Fluorocarbon	140	5000	Hydraulic Valve Systems Division	-4	40	Hydraulic Pressure	1/4 BSPP Pilot Port	NFPA D05	Subplate	Gray Iron	4-Way	Air Operated Directional Control Valve	2-Position	9	Subplate	5000 PSI	NFPA D05, CETOP 5, NG 10	Up to 40 depending on spool
D3A20BN	Quote Required	Quote Required	$0.01	EA	Nitrile	140	5000	Hydraulic Valve Systems Division	-4	40	Hydraulic Pressure	n/a	NFPA D05	Subplate	Gray Iron	4-Way	Air Operated Directional Control Valve	Single Operator	9	Subplate	5000 PSI	NFPA D05, CETOP 5, NG 10	Up to 40 depending on spool
D3A20BN90	Quote Required	Quote Required	TBD		Nitrile	140	5000	Hydraulic Valve Systems Division	-4	40	Hydraulic Pressure	1/4 BSPP Pilot Port	NFPA D05	Subplate	Gray Iron	4-Way	Air Operated Directional Control Valve	Single Operator	9	Subplate	5000 PSI	NFPA D05, CETOP 5, NG 10	Up to 40 depending on spool
D3A20BV	Quote Required	Quote Required	TBD		Fluorocarbon	140	5000	Hydraulic Valve Systems Division	-4	40	Hydraulic Pressure	n/a	NFPA D05	Subplate	Gray Iron	4-Way	Air Operated Directional Control Valve	Single Operator	9	Subplate	5000 PSI	NFPA D05, CETOP 5, NG 10	Up to 40 depending on spool
D3A20BV90	Quote Required	Quote Required	TBD		Fluorocarbon	140	5000	Hydraulic Valve Systems Division	-4	40	Hydraulic Pressure	1/4 BSPP Pilot Port	NFPA D05	Subplate	Gray Iron	4-Way	Air Operated Directional Control Valve	Single Operator	9	Subplate	5000 PSI	NFPA D05, CETOP 5, NG 10	Up to 40 depending on spool
D3A20DN	Quote Required	Quote Required	TBD		Nitrile	140	5000	Hydraulic Valve Systems Division	-4	40	Hydraulic Pressure	n/a	NFPA D05	Subplate	Gray Iron	4-Way	Air Operated Directional Control Valve	Double Operator	9	Subplate	5000 PSI	NFPA D05, CETOP 5, NG 10	Up to 40 depending on spool
D3A20DN90	Quote Required	Quote Required	TBD		Nitrile	140	5000	Hydraulic Valve Systems Division	-4	40	Hydraulic Pressure	1/4 BSPP Pilot Port	NFPA D05	Subplate	Gray Iron	4-Way	Air Operated Directional Control Valve	Double Operator	9	Subplate	5000 PSI	NFPA D05, CETOP 5, NG 10	Up to 40 depending on spool
D3A20DV	Quote Required	Quote Required	TBD		Fluorocarbon	140	5000	Hydraulic Valve Systems Division	-4	40	Hydraulic Pressure	n/a	NFPA D05	Subplate	Gray Iron	4-Way	Air Operated Directional Control Valve	Double Operator	9	Subplate	5000 PSI	NFPA D05, CETOP 5, NG 10	Up to 40 depending on spool
D3A20DV90	Quote Required	Quote Required	TBD		Fluorocarbon	140	5000	Hydraulic Valve Systems Division	-4	40	Hydraulic Pressure	1/4 BSPP Pilot Port	NFPA D05	Subplate	Gray Iron	4-Way	Air Operated Directional Control Valve	Double Operator	9	Subplate	5000 PSI	NFPA D05, CETOP 5, NG 10	Up to 40 depending on spool
