787TC Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.

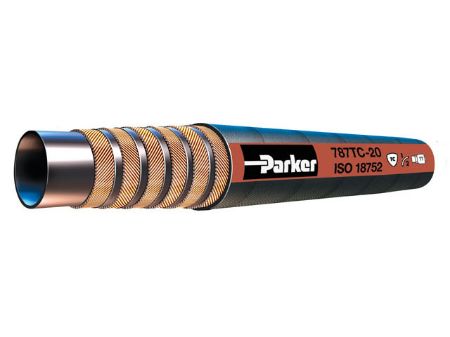

Parker’s GlobalCore 787TC hose provides 5,000 psi (35 MPa) constant working pressure in all sizes. ½ ISO 18752 minimum bend radius. Flex impulse tested providing a hose superior in both performance and service life. Meets ISO 18752 performance specification.

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	UOM	Mating Fitting Series	Material	Working Pressure	Inner Diameter	Parker Group	Inch/Metric	Parker Division	Inner Diameter	Inner Diameter Inch/mm	Material	Application	Working Pressure Range	Hose Category	Trade Name	Mating End Fitting Series	Specification	Minimum Bend Radius	Operating Temperature	Hose Pressure Range	Series	Distinct Properties	ISO 18752 Performance	Working Pressure
787TC-10-RL	776 In Stock	4591 In Stock	$27.59/foot	FT	77	Rubber	5,000 psi (35 MPa)	0.625 Inch	Fluid Connector	Inch	Hose Products	0.625 Inch	Inch	Rubber	Hydraulic	> 5000 PSI (345 bar)	Hydraulic Industry Standard	GlobalCore	77	ISO 18752	4 Inch	-40°F to +257°F (-40°C to +125°C)	High	787TC	Tough Cover Constant Pressure 5000 PSI	DC	5,000 psi (35 MPa)
787TC-12-RL	1192 In Stock	6875 In Stock	$40.95/foot	FT	77	Rubber	5,000 psi (35 MPa)	0.75 Inch	Fluid Connector	Inch	Hose Products	0.75 Inch	Inch	Rubber	Hydraulic	> 5000 PSI (345 bar)	Hydraulic Industry Standard	GlobalCore	77	ISO 18752	4 3/4 Inch	-40°F to +257°F (-40°C to +125°C)	High	787TC	Tough Cover Constant Pressure 5000 PSI	DC	5,000 psi (35 MPa)
787TC-16-RL	1463 In Stock	5852 In Stock	$54.36/foot	FT	77	Rubber	5,000 psi (35 MPa)	1 Inch	Fluid Connector	Inch	Hose Products	1 Inch	Inch	Rubber	Hydraulic	> 5000 PSI (345 bar)	Hydraulic Industry Standard	GlobalCore	77	ISO 18752	6 Inch	-40°F to +257°F (-40°C to +125°C)	High	787TC	Tough Cover Constant Pressure 5000 PSI	DC	5,000 psi (35 MPa)
787TC-32-BX	50 In Stock	157 In Stock	$164.01/foot	FT	77	Rubber	5,000 psi (35 MPa)	2 Inch	Fluid Connector	Inch	Hose Products	2 Inch	Inch	Rubber	Hydraulic	> 5000 PSI (345 bar)	Hydraulic Industry Standard	GlobalCore	77	ISO 18752	12 1/2 Inch	-40°F to +257°F (-40°C to +125°C)	High	787TC	Tough Cover Constant Pressure 5000 PSI	DC	5,000 psi (35 MPa)
787TC-4-BX	Quote Required	Quote Required	$7.65/foot	FT	43	Rubber	5,000 psi (35 MPa)	0.25 Inch	Fluid Connector	Inch	Hose Products	0.25 Inch	Inch	Rubber	Hydraulic	> 5000 PSI (345 bar)	Hydraulic Industry Standard	GlobalCore	43	ISO 18752	2 Inch	-40°F to +212°F (-40°C to +100°C)	High	787TC	Tough Cover Constant Pressure 5000 PSI	AC	5,000 psi (35 MPa)
787TC-4-RL	179 In Stock	4869 In Stock	$6.18/foot	FT	43	Rubber	5,000 psi (35 MPa)	0.25 Inch	Fluid Connector	Inch	Hose Products	0.25 Inch	Inch	Rubber	Hydraulic	> 5000 PSI (345 bar)	Hydraulic Industry Standard	GlobalCore	43	ISO 18752	2 Inch	-40°F to +212°F (-40°C to +100°C)	High	787TC	Tough Cover Constant Pressure 5000 PSI	AC	5,000 psi (35 MPa)
787TC-6-RL	1160 In Stock	20931 In Stock	$6.99/foot	FT	43	Rubber	5,000 psi (35 MPa)	0.375 Inch	Fluid Connector	Inch	Hose Products	0.375 Inch	Inch	Rubber	Hydraulic	> 5000 PSI (345 bar)	Hydraulic Industry Standard	GlobalCore	43	ISO 18752	2 1/2 Inch	-40°F to +212°F (-40°C to +100°C)	High	787TC	Tough Cover Constant Pressure 5000 PSI	AC	5,000 psi (35 MPa)
787TC-8-RL	1403 In Stock	6873 In Stock	$25.12/foot	FT	43	Rubber	5,000 psi (35 MPa)	0.5 Inch	Fluid Connector	Inch	Hose Products	0.5 Inch	Inch	Rubber	Hydraulic	> 5000 PSI (345 bar)	Hydraulic Industry Standard	GlobalCore	43	ISO 18752	3 1/2 Inch	-40°F to +257°F (-40°C to +125°C)	High	787TC	Tough Cover Constant Pressure 5000 PSI	DC	5,000 psi (35 MPa)
