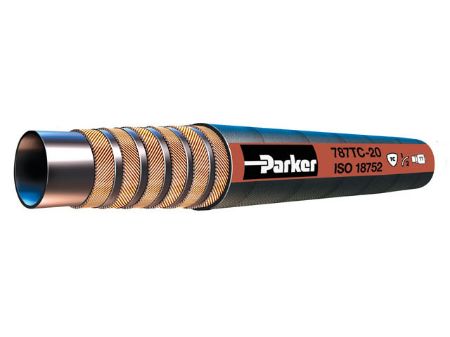

787 Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.

Parker’s GlobalCore 787 hose provides 5,000 psi (35 MPa) constant working pressure in all sizes. ½ ISO 18752 mminimum bend radius. Flex impulse tested providing a hose superior in both performance and service life. Meets ISO 18752 performance specification.

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	UOM	Mating Fitting Series	Material	Working Pressure	Inner Diameter	Parker Group	Inch/Metric	Parker Division	Inner Diameter	Inner Diameter Inch/mm	Material	Application	Working Pressure Range	Hose Category	Operating Temperature	Trade Name	Mating End Fitting Series	Specification	ISO 18752 Performance	Minimum Bend Radius	Hose Pressure Range	Series	Distinct Properties	Working Pressure
787-4-RL	235 In Stock	2476 In Stock	$5.25/foot	FT	43	Rubber	5,000 psi (35 MPa)	0.25 Inch	Fluid Connector	Inch	Hose Products	0.25 Inch	Inch	Rubber	Hydraulic	> 5000 PSI (345 bar)	Hydraulic Industry Standard	-40°F to +212°F (-40°C to +100°C)	GlobalCore	43	ISO 18752	AC	2 Inch	High	787	Constant Pressure 5000 PSI	5,000 psi (35 MPa)
787-6-RL	Quote Required	4474 In Stock	$5.94/foot	FT	43	Rubber	5,000 psi (35 MPa)	0.375 Inch	Fluid Connector	Inch	Hose Products	0.375 Inch	Inch	Rubber	Hydraulic	> 5000 PSI (345 bar)	Hydraulic Industry Standard	-40°F to +212°F (-40°C to +100°C)	GlobalCore	43	ISO 18752	AC	2 1/2 Inch	High	787	Constant Pressure 5000 PSI	5,000 psi (35 MPa)
787-8-RL	Quote Required	2230 In Stock	$21.34/foot	FT	43	Rubber	5,000 psi (35 MPa)	0.5 Inch	Fluid Connector	Inch	Hose Products	0.5 Inch	Inch	Rubber	Hydraulic	> 5000 PSI (345 bar)	Hydraulic Industry Standard	-40°F to +212°F (-40°C to +100°C)	GlobalCore	43	ISO 18752	BC	3 1/2 Inch	High	787	Constant Pressure 5000 PSI	5,000 psi (35 MPa)
