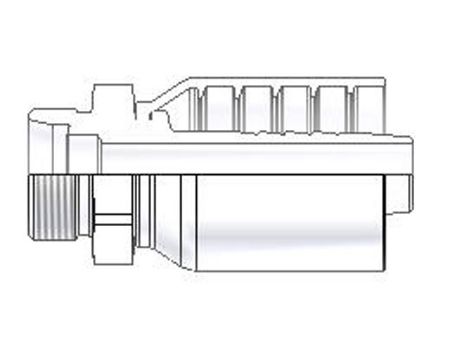

78 Series 1ZM78

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 78 Series Fittings is a Parkrimp permanent (crimp) style fitting which permits quick assembly with our family of Parkrimp crimpers. Assembly of No-Skive hose and fittings does not require removal of the outer cover of the hose. This eliminates premature hose failure caused by skiving too long or short. 78 Series Fittings has zinc dichromate plating and are used with 781, 782ST, 782TC, 78C Hose - Parker Hydraulic Spiral Hose.

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	UOM	UOM	Material	Pkg Qty/UOM	Pkg Qty	Inner Diameter	End 1	Parker Group	Material	Parker Division	Inner Diameter	Inner Diameter Inch/mm	Inch/Metric	Trade Name	Hose Connection Type	Series	End 1 Type	End 1	Configuration Type
1ZM78-22-12	1 Limited Stock	3 In Stock	$90.56	EA	EA	Steel	10 EA	10	0.75 Inch	22 mm	Fluid Connector	Steel	Hose Products	0.75 Inch	Inch	Metric	Parkrimp	Permanent	78	mm	22 mm	Male 24° Cone Metric - Rigid - Straight
1ZM78-28-12	Quote Required	10 In Stock	TBD	EA	EA	Steel	1 EA	1	0.75 Inch	28 mm	Fluid Connector	Steel	Hose Products	0.75 Inch	Inch	Metric	Parkrimp	Permanent	78	mm	28 mm	Male 24° Cone Metric - Rigid - Straight
1ZM78-28-16	Quote Required	15 In Stock	TBD	EA	EA	Steel	5 EA	5	1 Inch	28 mm	Fluid Connector	Steel	Hose Products	1 Inch	Inch	Metric	Parkrimp	Permanent	78	mm	28 mm	Male 24° Cone Metric - Rigid - Straight
1ZM78-35-16	1 Limited Stock	5 In Stock	$53.82	EA	EA	Steel	1 EA	1	1 Inch	35 mm	Fluid Connector	Steel	Hose Products	1 Inch	Inch	Metric	Parkrimp	Permanent	78	mm	35 mm	Male 24° Cone Metric - Rigid - Straight
