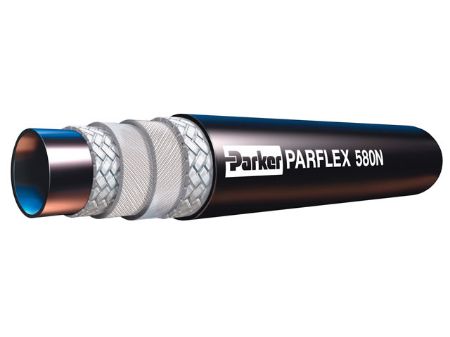

580N Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High Pressure meets or exceeds 100R8 Hydraulic circits replaces 100R2 hose wherever greater flexability is needed

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	UOM	UOM	Pkg Qty	Material	Mating Fitting Series	Inner Diameter	Pkg Qty/UOM	Working Pressure	Inner Diameter	Series	Specification	Hose Pressure Range	Application	Parker Group	Material	Mating Fitting Series	Inner Diameter Inch/mm	Working Pressure Range	Inch/Metric	Parker Division
580N-16-SL	Quote Required	Quote Required	TBD	FT		1	Thermoplastic	58H	1 Inch	1 FT	2000 PSI (140 bar)	1 Inch	580N	SAE 100R8	High	Hydraulic	Fluid Connector	Thermoplastic	58H	Inch	2000 to 2999 PSI ( 138 to 207 bar)	Inch	Parflex
580N-4	Quote Required	Quote Required	TBD	FT		250	Thermoplastic	58	0.25 Inch	250 FT	5000 PSI (340 bar)	0.25 Inch	580N	SAE 100R9	High	Hydraulic	Fluid Connector	Thermoplastic	58	Inch	> 5000 PSI (345 bar)	Inch	Parflex
580N-6	12 In Stock	43 In Stock	$4.80	FT	FT	250	Thermoplastic	58	0.375 Inch	250 FT	4000 PSI (280 bar)	0.375 Inch	580N	SAE 100R10	High	Hydraulic	Fluid Connector	Thermoplastic	58	Inch	4000 to 4999 PSI (276 to 345 bar)	Inch	Parflex
580N-6-SL	Quote Required	Quote Required	TBD	FT		1	Thermoplastic	58	0.375 Inch	1 FT	4000 PSI (280 bar)	0.375 Inch	580N	SAE 100R11	High	Hydraulic	Fluid Connector	Thermoplastic	58	Inch	4000 to 4999 PSI (276 to 345 bar)	Inch	Parflex
