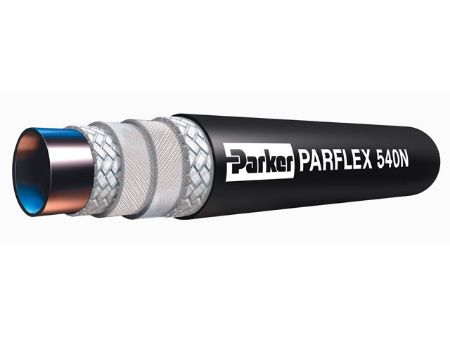

540N Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
General Hydraulic Hose meets or exceeds SAE 100R7 Hydraulic and pneumatic systems. Excellent Chemical compatibility wide temperature range.
Read More...| Action | Part No. | Availability | Partner Available | Price | UOM | UOM | Pkg Qty | Inner Diameter | Working Pressure | Material | Pkg Qty/UOM | Mating Fitting Series | Parker Group | Inch/Metric | Inner Diameter | Inner Diameter Inch/mm | Parker Division | Working Pressure Range | Application | Hose Pressure Range | Material | Specification | Mating Fitting Series | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 540N-12-SL | Quote Required | TBD | FT | 1 | 0.75 Inch | 1250 PSI (90 bar) | Thermoplastic | 1 FT | 55 | Fluid Connector | Inch | 0.75 Inch | Inch | Parflex | 1000 to 1999 PSI (69 to 138 bar) | Hydraulic | Medium | Thermoplastic | SAE 100R7 | 55 | 540N | |||
| 540N-2-SL | Quote Required | TBD | FT | 1 | 0.125 Inch | 3000 PSI (210 bar) | Thermoplastic | 1 FT | 57 | Fluid Connector | Inch | 0.125 Inch | Inch | Parflex | 3000 to 3999 PSI (207 to 276 bar) | Hydraulic | Medium | Thermoplastic | SAE 100R7 | 57 | 540N | |||
| 540N-3-RL | Quote Required | TBD | FT | 500 | 0.188 Inch | 3000 PSI (210 bar) | Thermoplastic | 500 FT | 55 | Fluid Connector | Inch | 0.188 Inch | Inch | Parflex | 3000 to 3999 PSI (207 to 276 bar) | Hydraulic | Medium | Thermoplastic | SAE 100R7 | 55 | 540N | |||
| 540N-3-SL | Quote Required | TBD | FT | 1 | 0.188 Inch | 3000 PSI (210 bar) | Thermoplastic | 1 FT | 55 | Fluid Connector | Inch | 0.188 Inch | Inch | Parflex | 3000 to 3999 PSI (207 to 276 bar) | Hydraulic | Medium | Thermoplastic | SAE 100R7 | 55 | 540N | |||
| 540N-4-RL | Quote Required | 598 In Stock | TBD | FT | FT | 500 | 0.25 Inch | 2750 PSI (190 bar) | Thermoplastic | 500 FT | 55 | Fluid Connector | Inch | 0.25 Inch | Inch | Parflex | 2000 to 2999 PSI ( 138 to 207 bar) | Hydraulic | Medium | Thermoplastic | SAE 100R7 | 55 | 540N | |
| 540N-4-SL | Quote Required | TBD | FT | 1 | 0.25 Inch | 2750 PSI (190 bar) | Thermoplastic | 1 FT | 55 | Fluid Connector | Inch | 0.25 Inch | Inch | Parflex | 2000 to 2999 PSI ( 138 to 207 bar) | Hydraulic | Medium | Thermoplastic | SAE 100R7 | 55 | 540N | |||
| 540N-5-RL | Quote Required | TBD | FT | 500 | 0.313 Inch | 2500 PSI (170 bar) | Thermoplastic | 500 FT | 55 | Fluid Connector | Inch | 0.313 Inch | Inch | Parflex | 2000 to 2999 PSI ( 138 to 207 bar) | Hydraulic | Medium | Thermoplastic | SAE 100R7 | 55 | 540N | |||
| 540N-6-RL | Quote Required | 1136 In Stock | TBD | FT | FT | 500 | 0.375 Inch | 2250 PSI (160 bar) | Thermoplastic | 500 FT | 55 | Fluid Connector | Inch | 0.375 Inch | Inch | Parflex | 2000 to 2999 PSI ( 138 to 207 bar) | Hydraulic | Medium | Thermoplastic | SAE 100R7 | 55 | 540N | |
| 540N-6-SL | Quote Required | TBD | FT | 1 | 0.375 Inch | 2250 PSI (160 bar) | Thermoplastic | 1 FT | 55 | Fluid Connector | Inch | 0.375 Inch | Inch | Parflex | 2000 to 2999 PSI ( 138 to 207 bar) | Hydraulic | Medium | Thermoplastic | SAE 100R7 | 55 | 540N | |||
| 540N-8-RL | Quote Required | TBD | FT | 400 | 0.5 Inch | 2000 PSI (140 bar) | Thermoplastic | 400 FT | 55 | Fluid Connector | Inch | 0.5 Inch | Inch | Parflex | 2000 to 2999 PSI ( 138 to 207 bar) | Hydraulic | Medium | Thermoplastic | SAE 100R7 | 55 | 540N | |||
| 540N-8-SL | Quote Required | TBD | FT | 1 | 0.5 Inch | 2000 PSI (140 bar) | Thermoplastic | 1 FT | 55 | Fluid Connector | Inch | 0.5 Inch | Inch | Parflex | 2000 to 2999 PSI ( 138 to 207 bar) | Hydraulic | Medium | Thermoplastic | SAE 100R7 | 55 | 540N |
