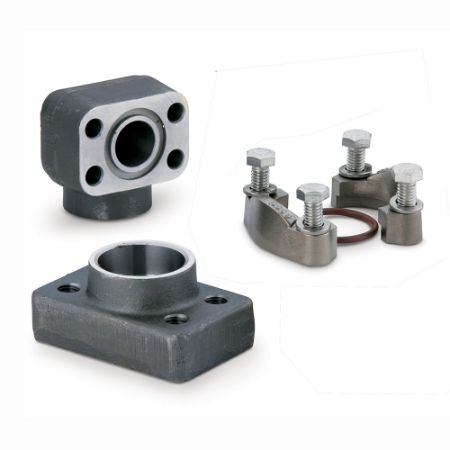

4-Bolt Hydraulic Flanges and Components
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's hydraulic flanges and components conform to SAE J518 and ISO 6162-1 and -2. These proven leak-free connections are suited for tube and pipe in larger sizes, and have achieved world-wide acceptance.
Markets:
• Construction
• Agriculture
• Oil & Gas
• Transportation
• Mining
• Forestry
Features/Benefits:
• Adapts BSPP, SAE Straight thread and NPTF, as well as tube and pipe weld connections.
• Lower tightening torque required compared to that required for equivalent size threaded port, therefore smaller wrenches and wrench swing clearances needed--providing ease of assembly in tight quarters.
• Ease of disassembly with use of split clamps.
• Over 60 configurations available, with custom designs available on request.
• Available in steel and stainless steel in flange sizes ½” through 3” with working pressures up to 6000 psi.
Applications:
• Hydraulic fluid and gas handling connections
Read More...Markets:
• Construction
• Agriculture
• Oil & Gas
• Transportation
• Mining
• Forestry
Features/Benefits:
• Adapts BSPP, SAE Straight thread and NPTF, as well as tube and pipe weld connections.
• Lower tightening torque required compared to that required for equivalent size threaded port, therefore smaller wrenches and wrench swing clearances needed--providing ease of assembly in tight quarters.
• Ease of disassembly with use of split clamps.
• Over 60 configurations available, with custom designs available on request.
• Available in steel and stainless steel in flange sizes ½” through 3” with working pressures up to 6000 psi.
Applications:
• Hydraulic fluid and gas handling connections
| Action | Part No. | Availability | Partner Available | Price | UOM | Division | Maximum Dynamic Pressure | Includes | Flange Size | O-Ring Material | Specifications Met | Body Material | Flange Size (inch) | Connection Tube O.D. (inch) | Flange | Face Style | Connection Style | Connection 1 Style | Connection Pipe O.D. (inch) | Connection Thread Size (inch) | Dimensional Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12B3HQ2SX | Quote Required | $32.40/each | EA | Tube Fittings Division | 6000 psi | n/a | Code 62 | 90 Durometer | ISO 6162-2 | Steel | 3/4 | 3/4 | Code 62 | O-Ring Face | Braze Flange Head Connector | Tube Braze Socket | na | na | |||
| 12CP2SX | Quote Required | 1 Limited Stock | $20.31/each | EA | Tube Fittings Division | 6000 psi | n/a | Code 62 | n/a | ISO 6162-2 | Steel | 3/4 | na | Code 62 | na | Flange Connector Plate | na | na | na | ||
| 12FCS1SK | Quote Required | 2 Limited Stock | $28.76/each | EA | Tube Fittings Division | 5000 psi | Kit Includes 2 Flange Clamp Halves, 4 HHCS Bolts, 4 Lock Washers and an O-Ring | Code 61 | n/a | ISO 6162-1 | Steel | 3/4 | na | Code 61 | na | Split Flange Clamps Kit | na | na | na | ||
| 12G5Q1BSX | 2 Limited Stock | 3 In Stock | $51.57/each | EA | Tube Fittings Division | 4000 psi | n/a | Code 61 | 90 Durometer | SAE J518 | Steel | 3/4 | na | Code 61 | O-Ring Face | Block Adapter | SAE | na | 1 1/16-12 | ||
| 12G5Q1BSXK | 11 In Stock | 11 In Stock | $70.31/each | EA | Tube Fittings Division | 4000 psi | Kit Includes 4 Bolts, 4 Locks Washers and an O-Ring. | Code 61 | 90 Durometer | ISO 6162-1 | Steel | 3/4 | na | Code 61 | O-Ring Face | Block Adapter Kit | SAE | na | 1 1/16-12 | ||
| 12G5Q2BSXK | 4 In Stock | 2 Limited Stock | $128.56/each | EA | Tube Fittings Division | 5500 psi | Kit Includes 4 Bolts, 4 Locks Washers and an O-Ring. | Code 62 | 90 Durometer | SAE J518 | Steel | 3/4 | na | Code 62 | O-Ring Face | Block Adapter Kit | SAE | na | 1 1/16-12 | ||
| 12GQ1PSX | Quote Required | $62.35/each | EA | Tube Fittings Division | 4500 | n/a | Code 61 | n/a | ISO 6162-1 | Steel | 3/4 | na | Code 61 | Flat Face | Block Adapter | NPTF | na | 3/4-14 | |||
| 12PQ1BSXK | Quote Required | 2 Limited Stock | $80.68/each | EA | Tube Fittings Division | 5000 psi | Kit Includes 4 Bolts, 4 Locks Washers and an O-Ring. | Code 61 | Nitrile | SAE J518 | Steel | 3/4 | na | Code 61 | O-Ring Face | Block Plug Kit | na | na | na | ||
| 12PQ1SX | 14 In Stock | 32 In Stock | $16.40/each | EA | Tube Fittings Division | 5000 psi | n/a | Code 61 | 90 Durometer | ISO 6162-1 | Steel | 3/4 | na | Code 61 | O-Ring Face | Flange Head Plug | na | na | na | 0.3776978417266187 lb | |
| 12PQ2PSX | Quote Required | 1 Limited Stock | $87.02/each | EA | Tube Fittings Division | 6000 | n/a | Code 62 | n/a | ISO 6162-2 | Steel | 3/4 | na | Code 62 | Flat Face | Block Plug | na | na | na | ||
| 12PQ2SX | 22 In Stock | 20 In Stock | $31.76/each | EA | Tube Fittings Division | 6000 psi | n/a | Code 62 | 90 Durometer | ISO 6162-2 | Steel | 3/4 | na | Code 62 | O-Ring Face | Flange Head Plug | na | na | na | 0.12464028776978417 lb | |
| 16B3HQ1SX | Quote Required | $17.42/each | EA | Tube Fittings Division | 4500 psi | n/a | Code 61 | 90 Durometer | SAE J518 | Steel | 1 | 1 | Code 61 | O-Ring Face | Braze Flange Head Connector | Tube Braze Socket | na | na | |||
| 16CP1SX | Quote Required | 1 Limited Stock | $17.58/each | EA | Tube Fittings Division | 5000 psi | n/a | Code 61 | n/a | ISO 6162-1 | Steel | 1 | na | Code 61 | na | Flange Connector Plate | na | na | na | ||
| 16FCS2SSK | 12 In Stock | Quote Required | $671.46/each | EA | Tube Fittings Division | 6000 psi | Kit Includes 2 Flange Clamp Halves, 4 HHCS Bolts, 4 Lock Washers and an O-Ring | Code 62 | n/a | ISO 6162-2 | Stainless Steel | 1 | na | Code 62 | na | Split Flange Clamps Kit | na | na | na | ||
| 16G5Q1BSXK | 24 In Stock | 1 Limited Stock | $72.03/each | EA | Tube Fittings Division | 3500 psi | Kit Includes 4 Bolts, 4 Locks Washers and an O-Ring. | Code 61 | Nitrile | SAE J518 | Steel | 1 | na | Code 61 | O-Ring Face | Block Adapter Kit | SAE | na | 1 5/16-12 | ||
| 16G5Q2BSXK | 8 In Stock | 1 Limited Stock | $148.85/each | EA | Tube Fittings Division | 4500 psi | Kit Includes 4 Bolts, 4 Locks Washers and an O-Ring. | Code 62 | Nitrile | SAE J518 | Steel | 1 | na | Code 62 | O-Ring Face | Block Adapter Kit | SAE | na | 1 5/16-12 | ||
| 16GQ1BSX | Quote Required | $49.60/each | EA | Tube Fittings Division | 4000 psi | n/a | Code 61 | Nitrile | ISO 6162-1 | Steel | 1 | na | Code 61 | O-Ring Face | Block Adapter | NPTF | na | 1 | |||
| 16GQ1PSX | 1 Limited Stock | Quote Required | $66.08/each | EA | Tube Fittings Division | 4000 | n/a | Code 61 | n/a | ISO 6162-1 | Steel | 1 | na | Code 61 | Flat Face | Block Adapter | NPTF | na | 1 | ||
| 16GQ2BSXK | Quote Required | $146.59/each | EA | Tube Fittings Division | 4000 psi | Kit Includes 4 Bolts, 4 Locks Washers and an O-Ring. | Code 62 | Nitrile | ISO 6162-2 | Steel | 1 | na | Code 62 | O-Ring Face | Block Adapter Kit | NPTF | na | 1 | |||
| 16PQ1SX | 30 In Stock | 121 In Stock | $17.12/each | EA | Tube Fittings Division | 5000 psi | n/a | Code 61 | Nitrile | ISO 6162-1 | Steel | 1 | na | Code 61 | O-Ring Face | Flange Head Plug | na | na | na | 0.6232014388489209 lb |
